What Does "Electrical System Malfunction" Mean on an Audi?

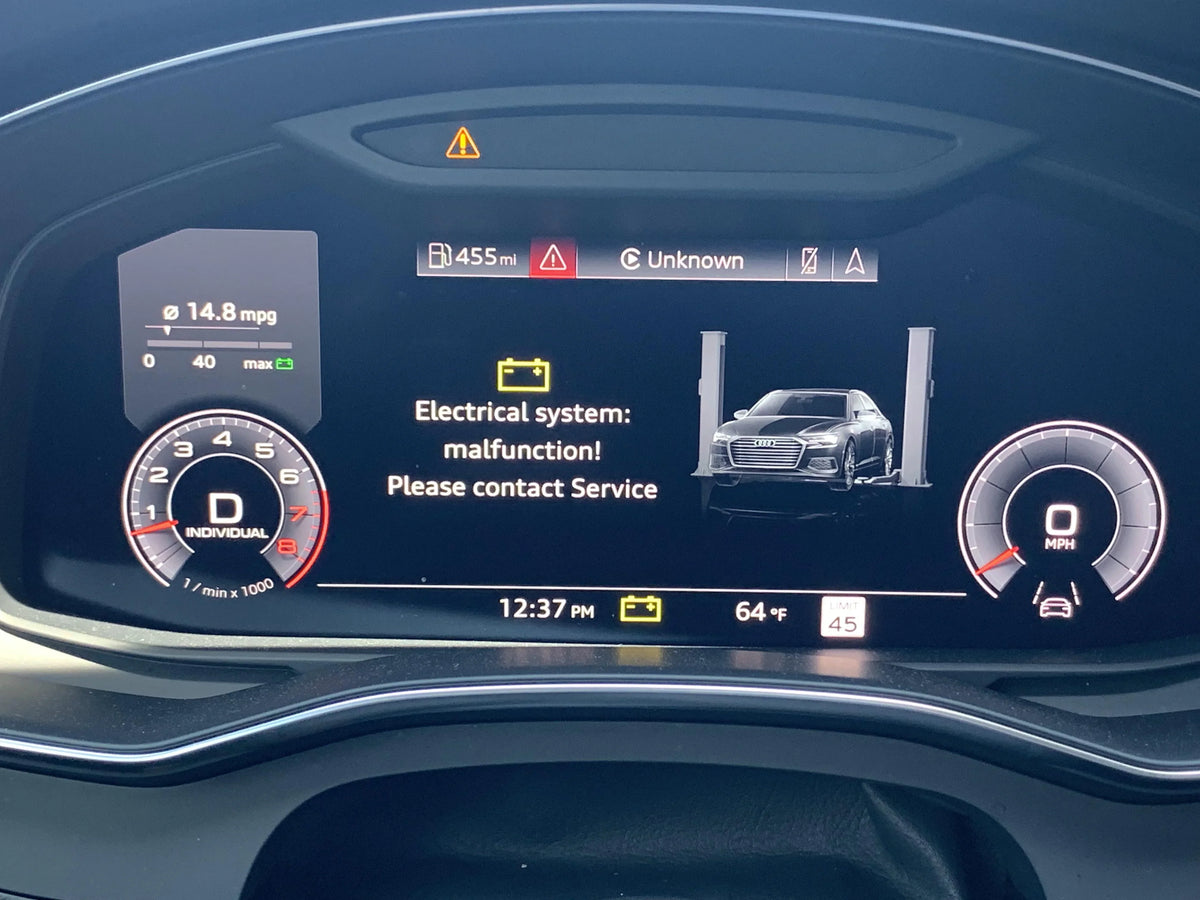

The Audi Electrical System Malfunction warning appears in the instrument cluster or Virtual Cockpit when the vehicle's onboard diagnostics detect a fault in the 12-volt electrical network. This can range from a weakening battery and failing alternator to a fault in the Battery Monitoring Sensor (BMS) or a load-shedding event triggered by the Energy Management System. It is one of the more urgent electrical warnings Audi displays because it directly affects the vehicle's ability to keep critical systems powered.
The audi electrical system malfunction message is common across a wide range of platforms — including the B8, B8.5, B9 (A4/A5/S4/S5), C7, C8 (A6/A7/S6/S7), and Q5, Q7, Q8 SUV lines — particularly on vehicles equipped with Start-Stop, mild hybrid (MHEV), or quattro ultra systems that place heavy, variable loads on the 12V network. The warning often pairs with other alerts such as "Please turn off electrical consumers" or reduced functionality in MMI, Audi Pre Sense, or Drive Select.
Common Causes of Electrical System Fault on an Audi
1. Weak or Failing 12V Battery
The most frequent cause of an audi electrical system fault is a 12V battery that can no longer hold adequate charge under load. Audi vehicles — especially those with Start-Stop systems — use AGM (Absorbent Glass Mat) batteries that degrade faster than conventional lead-acid units. When the battery's cold cranking amps (CCA) drop below the threshold stored in the Battery Monitoring Sensor, the Energy Management System flags the fault. This is particularly common on B8 A4 and C7 A6 models with over 80,000 miles. Replacing the battery requires coding the new unit to the vehicle via VCDS or ODIS — a direct swap without coding will not clear the warning.
2. Failing Alternator or Voltage Regulator
If the alternator is undercharging (output below ~13.5V at idle) or overcharging (above ~14.8V), the audi electrical system malfunction warning will activate. On B9 A4/A5 and Q5 (FY) models, the alternator integrates with the mild hybrid belt-alternator-starter (BAS) unit, making diagnosis more complex. A worn voltage regulator — often a serviceable component on older Bosch alternators — can cause intermittent charging faults that appear and disappear with temperature changes. Check charging voltage at the battery terminals with the engine at 2,000 RPM; anything outside the 13.8–14.5V window warrants further investigation.
3. Battery Monitoring Sensor (BMS) Fault
The Battery Monitoring Sensor, mounted on the negative battery terminal, continuously reports battery state-of-charge, state-of-health, and current flow to the Body Control Module (BCM / J519). A faulty or contaminated BMS will send incorrect data, causing the Energy Management System to incorrectly flag an audi 12v electrical system malfunction even when the battery itself is healthy. This is common on A3 (8V), Q3 (8U), and first-generation Q5 (8R) platforms. Fault code 01316 (BCM communication fault) or a BMS-specific code will typically appear on scan.
4. Parasitic Drain / High Quiescent Current
Excessive current draw when the vehicle is parked — often called parasitic drain — depletes the 12V battery overnight or over a weekend. Audi's CAN bus architecture keeps multiple control modules partially active after shutdown; a module that fails to enter sleep mode (common culprits: MMI navigation unit, comfort control module J393, or aftermarket accessories) can draw 200–500mA instead of the acceptable sub-50mA quiescent current. The electrical system malfunction audi warning then appears at the next start. Diagnosis requires a clamp-style ammeter on the negative cable and a systematic fuse-pull procedure with VCDS monitoring.
5. Wiring, Ground Strap, or Connector Corrosion
Corroded or loose ground straps — particularly the engine-to-chassis and battery-to-body grounds — create resistance in the return path of the electrical system, causing erratic voltage readings and triggering the audi electrical fault warning. On C7 A6/A7 and B8 A4 models, the ground point behind the battery tray and the braided ground strap on the engine block are known corrosion points. Similarly, water intrusion into the front fuse box (J519 area) — a documented issue on B8.5 A5/S5 Cabriolets — can cause widespread electrical faults across multiple modules simultaneously.
What to Do When You See This Warning
When Electrical System Malfunction appears, reduce electrical load immediately: turn off seat heaters, rear defogger, and blower fan if not essential. If the warning is accompanied by dimming lights or sluggish power steering, pull over safely — these indicate the alternator may not be charging and you are running on battery reserve alone. Do not ignore the warning and continue driving; a complete loss of 12V power can disable Audi Pre Sense, power steering assist, ABS, and the instrument cluster itself. If the vehicle starts normally and warning lights are not multiplying, drive directly to a shop or home — do not make unnecessary stops that require restarts.
Avoid the common mistake of simply jump-starting the vehicle and assuming the problem is resolved. On Audi's Energy Management System, the audi electrical system malfunction warning will persist — and may cause additional stored faults — until the root cause is addressed and fault codes are cleared with a VAG-compatible scan tool. Swapping the battery without coding the replacement unit will also keep the warning active.
Don't Pay $100+ Just to Read a Fault Code
Audi stores VAG-specific fault codes behind this warning that a generic OBD2 reader won't surface. The Launch X431 CR319 reads Audi/VAG-specific codes in under 30 seconds — compact enough for the glove box, no subscription required.
→ Get the OBD2 ScannerHow to Diagnose Electrical System Fault on an Audi
Diagnosing an audi electrical system malfunction correctly requires more than a battery voltage check. Because the fault can originate in the battery, charging circuit, BMS, or a specific control module, a structured approach — starting with a full VAG fault code scan — is the only reliable method. A generic OBD2 scanner will often return no codes because the fault is stored in the Body Control Module (J519) or Battery Regulation Controller, not the engine ECU.
Step 1: Scan for fault codes. Use a VAG-compatible scanner (VCDS, OBDeleven, or the Launch X431 CR319) to perform a full system scan across all modules — not just the engine ECU. Pay specific attention to fault codes in the Body Control Module (J519), Energy Management (J644), and On-Board Power Supply Control Module. Record every stored and intermittent code before clearing anything.
Step 2: Load-test the 12V battery. A battery can read 12.6V at rest but collapse under load. Use a dedicated battery load tester — not a multimeter alone — to check cold cranking amps against the battery's rated CCA. Audi AGM batteries on Start-Stop models are typically rated at 70–95Ah / 760–850A CCA. A battery reading below 70% of its rated CCA should be replaced, and the new battery must be coded to the vehicle using VCDS (Adaptation channel: Battery) or ODIS.
Step 3: Check alternator output and charging circuit. With the engine running at 2,000 RPM and all accessories on (headlights, rear defogger, blower on max), measure voltage directly at the battery terminals. Expected range: 13.8–14.5V. Also check the B+ wire from the alternator to the fuse box for voltage drop under load — more than 0.2V drop indicates a wiring or connection fault. On MHEV models (48V belt-alternator-starter), verify the 48V lithium battery is not triggering a cascading fault into the 12V network.
Step 4: Inspect grounds and perform a parasitic drain test. Physically inspect all major ground straps — battery negative to chassis, engine block to chassis, and transmission to body. Clean any corroded connections with a wire brush and apply dielectric grease. If the warning appears after the vehicle sits overnight, perform a quiescent current test: connect a milliamp clamp meter to the negative battery cable after locking the vehicle and allow 10–15 minutes for all modules to sleep. Current draw above 50mA after sleep cycle indicates a module is not entering sleep mode — isolate by pulling fuses systematically while monitoring draw.
Audi-Specific Fault Codes Related to Electrical System Fault
| Code | Description | Likely cause |
|---|---|---|
| B1001 / 00588 | On-Board Power Supply — Voltage too low | Weak or failed 12V AGM battery; alternator undercharging |
| 01316 | Body Control Module (J519) — No communication | Low supply voltage to J519; corroded ground at BCM connector |
| B200A | Battery Monitoring Sensor — Signal implausible | Faulty or improperly seated BMS on negative terminal |
| 00955 / B100097 | Alternator / Generator — Charge circuit fault | Failing alternator, worn voltage regulator, or broken B+ wire |
FAQ — Audi Electrical System Fault
Can I keep driving with the Electrical System Malfunction warning on my Audi?
Short distances to a repair facility are generally acceptable if the warning appears alone and the vehicle runs normally. However, if the warning is accompanied by dimming lights, multiple additional warnings, or sluggish power steering, stop driving immediately. An Audi running on battery reserve alone can lose ABS, Pre Sense, and power steering assist without further warning.
Will the Electrical System Malfunction warning clear itself after charging the battery?
Not always. On Audi's Energy Management System, the fault code stored in the Body Control Module (J519) or Battery Regulation Controller must be cleared with a VAG-compatible scan tool after the underlying issue is resolved. Simply charging the battery or replacing it without coding the new unit will keep the warning active in the instrument cluster.
Does replacing the Audi battery require programming or coding?
Yes — this is a critical and commonly overlooked step. Audi's Energy Management System tracks battery age, capacity, and usage history. When a new battery is installed, the replacement must be coded to the vehicle using VCDS, OBDeleven, or ODIS so the system resets its charging strategy and quiescent current calculations. Failure to code the new battery leads to premature failure and recurring audi 12v electrical system malfunction warnings.
Which Audi models are most commonly affected by the Electrical System Malfunction warning?
The warning is documented across virtually all current Audi platforms but is most frequently reported on the B8/B8.5 A4 and A5 (2009–2017), C7 A6 and A7 (2012–2018), 8R Q5 (2009–2017), and B9 A4/A5/Q5 (2017–present) — particularly vehicles with Start-Stop systems, quattro ultra, or 48V mild hybrid architecture. These systems cycle the 12V battery more aggressively than conventional vehicles, accelerating AGM battery wear and increasing the likelihood of BMS and alternator-related faults.
