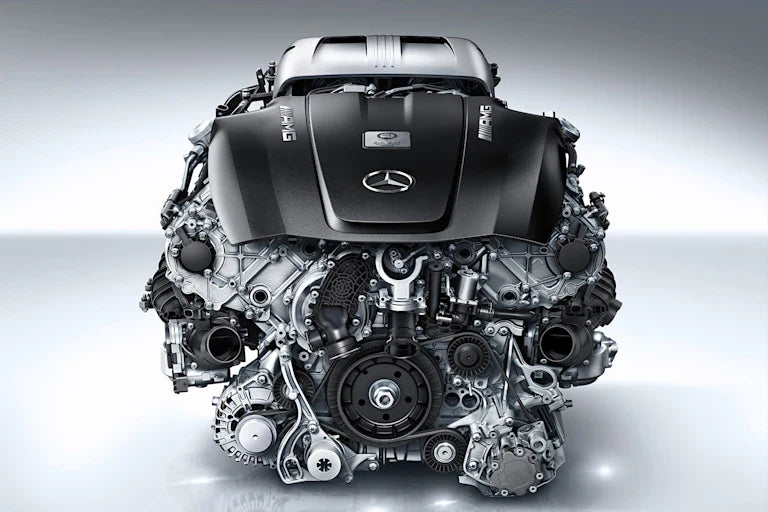

The Mercedes-Benz M177 is the hand-built, twin-turbocharged 4.0-liter V8 that sits at the heart of AMG's modern performance lineup. Introduced in 2015, it replaced the naturally aspirated M159 and the older M156 V8s, bringing forced induction to AMG's flagship models for the first time in the V8 segment. The result was a step-change in output, efficiency, and flexibility — without sacrificing the brutal character AMG enthusiasts demand.
What makes the M177 particularly special is its dry-sump lubrication, hot-vee twin-turbo layout (turbos mounted inside the V), and flat-plane crankshaft — a configuration borrowed directly from motorsport. This architecture allows extremely compact packaging while enabling astonishing response times.
The M177 powers some of the most celebrated modern AMG vehicles, including the C63 S, E63 S, GT S, GT R, and S63. It is AMG's answer to BMW's S63 and Audi's 4.0 TFSI, and by most measures it outguns both on character and raw drama. For enthusiasts, mechanics, and serious buyers, understanding this engine inside and out is essential.
Parts & Accessories
Your Mercedes-Benz M177 deserves better.
Hand-picked performance and replacement parts — ready to ship.
Shop Mercedes-Benz M177 parts →Specs & Versions
Base Specifications
| Attribute | Detail |
|---|---|
| Type | Twin-turbocharged V8, 90° bank angle |
| Displacement | 3,982 cc (4.0 L) |
| Block | Aluminum alloy |
| Head | Aluminum alloy, DOHC per bank |
| Valvetrain | 32-valve, twin camshafts per bank |
| Injection | Direct injection (piezo injectors) |
| Lubrication | Dry-sump (performance variants) |
| Production Years | 2015 – present |
M177 DE 40 AL — 469 hp / 516 lb-ft
The base M177 DE 40 AL is the standard output variant, found in the C63 and E63 non-S models in certain markets. It retains the core hot-vee architecture but is tuned for a broader, more accessible power delivery.
| Model | Chassis | Years |
|---|---|---|
| C 63 | W205 | 2015–2021 |
| E 63 | W213 | 2016–2020 |
| GLC 63 | X253 | 2017–2022 |
| GLE 63 | W166 | 2018–2020 |
| GLS 63 | X166 | 2018–2020 |
M177 DE 40 AL — 503 hp / 516 lb-ft
The S-variant tuning of the M177 raises output to 503 hp through increased boost pressure, revised ECU mapping, and uprated hardware. This is the version most North American buyers will encounter in the C63 S, E63 S, and the AMG GT range.
| Model | Chassis | Years |
|---|---|---|
| C 63 S | W205 | 2015–2021 |
| E 63 S | W213 | 2016–2020 |
| E 63 S 4MATIC+ | W213 | 2016–2020 |
| AMG GT S | C190 | 2015–2021 |
| AMG GT C | C190 | 2016–2021 |
| AMG GT R | C190 | 2017–2021 |
| AMG GT R Pro | C190 | 2019–2021 |
| AMG GT 63 S 4MATIC+ | X290 | 2018–present |
| S 63 4MATIC+ | W222 | 2017–2021 |
| GLC 63 S | X253 | 2017–2022 |
| GLE 63 S | W166 | 2018–2020 |
| GLS 63 S | X166 | 2018–2020 |
| CLS 63 S | W257 | 2018–2022 |
| G 63 | W463 | 2018–present |
How to Check a Used M177-Powered Car's History
Before buying any used car equipped with the M177, it is essential to ensure full transparency about its past. Undisclosed accidents and hidden mechanical abuse can directly compromise safety and long-term reliability — particularly in a hand-assembled AMG engine that commands significant repair costs.
The M177 is a popular tuning target, and many used examples have been flashed with aggressive third-party ECU tunes, run on improper fuel grades, or subjected to track use that never appeared in service records. Deferred oil changes are a critical risk factor on this engine given its dry-sump system and sensitivity to oil quality. Additionally, some sellers will not disclose prior rod bearing wear, turbocharger damage, or a history of coolant leaks. It is strongly recommended to check the vehicle's complete history using its license plate or VIN number before any purchase decision.
Get an instant 20% discount to access a vehicle's full past with total transparency via carVertical by clicking this link or on the banner below:
Key Strengths
The M177 represents a genuine engineering achievement in the modern AMG lineup. Its hot-vee twin-turbo layout dramatically reduces turbo lag compared to conventional external placement, delivering near-instantaneous throttle response that feels more naturally aspirated than turbocharged.
The flat-plane crankshaft gives the M177 a distinctive, high-revving soundtrack uncommon in production V8s and contributes to sharper rev response above 5,000 rpm. The dry-sump lubrication system ensures consistent oil pressure during hard cornering and track sessions — a critical advantage over conventional sump systems.
Aftermarket support for the M177 is already strong and growing rapidly. Major tuning companies including Weistec, RENNtech, Eurocharged, and Posaidon have developed comprehensive Stage 1 through Stage 3 software and hardware solutions. The engine responds exceptionally well to ECU remapping, with meaningful gains accessible even at Stage 1 without hardware changes.
Long-term durability, while still being established given the engine's relative youth, appears promising when oil change intervals are respected and the engine is properly warmed up before hard use. The hand-assembly process at AMG's Affalterbach facility also suggests tighter tolerances than typical production line engines.
Known Reliability Issues
Camshaft Adjuster / Phaser Wear
Symptom: Rough idle at cold start, rattling noise from the top of the engine on startup, P0011/P0021 fault codes relating to variable valve timing.
Cause: The camshaft phasers on the M177 are sensitive to oil quality and viscosity. Dirty or degraded oil allows varnish deposits to restrict phaser movement, causing erratic or sluggish valve timing adjustment.
Severity: Moderate
Typical mileage: 40,000 – 80,000 miles
Note: Strict adherence to 5W-40 full synthetic oil changes every 7,500 miles (or sooner under hard use) significantly reduces this risk. Do not extend OEM service intervals.
Turbocharger Oil Supply Line Seepage
Symptom: Minor oil smell from the engine bay, visible seepage around the turbocharger oil feed lines, occasional blue smoke on cold start.
Cause: The oil feed banjo fittings and return line seals can weep over time due to heat cycling. The hot-vee placement exposes these lines to extreme thermal stress continuously.
Severity: Moderate
Typical mileage: 50,000 – 90,000 miles
Note: Inspect at every service. Replace turbo oil feed lines proactively if any seepage is detected. Neglected leaks can lead to turbo bearing starvation and catastrophic failure.
Carbon Buildup on Intake Valves
Symptom: Rough idle, hesitation under load, reduced throttle response, increased fuel consumption, particularly noticeable after 50,000 miles.
Cause: Like all direct-injection engines, the M177 does not wash intake valves with fuel. Carbon deposits accumulate on valve stems and seats over time, restricting airflow.
Severity: Moderate
Typical mileage: 50,000 – 70,000 miles
Note: Walnut blasting (media blasting of intake ports) is the accepted solution and typically required every 60,000–80,000 miles. Some owners use oil catch cans to slow the rate of accumulation.
Spark Plug and Ignition Coil Degradation
Symptom: Misfires, rough running under boost, P030X misfire codes, hesitation at full throttle.
Cause: The high-compression, high-boost environment of the M177 accelerates spark plug electrode wear. The piezo injectors also place greater demands on ignition timing precision, meaning worn plugs are immediately noticeable.
Severity: Minor to Moderate
Typical mileage: 30,000 – 50,000 miles
Note: Replace OEM spark plugs on schedule — do not extend beyond 30,000 miles on tuned examples. Inspect ignition coils simultaneously and replace as a set if one fails.
Water Pump and Thermostat Failure
Symptom: Overheating warning, coolant temperature fluctuations, coolant loss, heater output inconsistency.
Cause: The M177 uses a map-controlled electric thermostat integrated with a mechanical water pump
Severity: Critical if ignored
Typical mileage: 70,000 – 100,000 miles
Note: Preventive replacement of the water pump and thermostat assembly before failure is strongly advised. Overheating even briefly can warp cylinder heads on the aluminum block.
Maintenance Schedule
| Service | Interval |
|---|---|
| Engine oil and filter change | Every 7,500 miles or 1 year (hard use: every 5,000 miles) |
| Spark plug replacement | Every 30,000 miles (tuned: every 20,000–25,000 miles) |
| Air filter replacement | Every 20,000 miles |
| Coolant flush | Every 4 years or 60,000 miles |
| Transmission fluid (9G-TRONIC) | Every 40,000 miles under performance use |
| Walnut blast (intake valves) | Every 60,000–80,000 miles |
| Turbo oil line inspection | Every 15,000 miles |
| Drive belt inspection | Every 40,000 miles |
| Brake fluid flush | Every 2 years |
Recommended oil specification: Mercedes-Benz 229.5 or 229.51 approved 5W-40 full synthetic. Do not use 5W-30 in performance-driven M177 applications.
Tuning Potential
| Stage | Modifications | Estimated Power |
|---|---|---|
| Stage 1 | ECU remap only | 560–580 hp |
| Stage 2 | ECU remap + upgraded intercoolers + downpipes | 620–650 hp |
| Stage 3 | ECU remap + larger turbos + fueling upgrades + intercoolers + downpipes | 700–800+ hp |
| Stage 3+ | Full built bottom end + port injection addition + high-flow turbos | 900–1,000+ hp |
Recommended first modifications in order of priority:
- ECU tune (Stage 1 remap — largest gain per dollar)
- Catless or high-flow downpipes (critical for unlocking turbo efficiency)
- Upgraded intercoolers (prevents heat soak under sustained boost)
- Oil catch can (slows intake valve carbon accumulation)
- Upgraded spark plugs (colder heat range for boosted applications)
- Auxiliary port injection kit (required above ~650 hp to supplement direct injection fueling)
At power levels exceeding 700 hp, the factory rod bearings, fuel injector capacity, and coolant system become limiting factors. Upgraded forged connecting rods, an auxiliary injection system, and a front-mount intercooler upgrade are essential for sustained high-power reliability. The 9G-TRONIC transmission also requires a torque converter upgrade and valve body tune beyond approximately 650 lb-ft of torque.
FAQ
Is the Mercedes-Benz M177 a reliable engine?
The M177 is generally a reliable engine when properly maintained, but it is not without complexity. Owners who respect oil change intervals, use the correct 5W-40 specification, and address minor issues promptly can expect well over 150,000 miles of service. It is a high-performance, high-tolerance unit — neglect is punished more severely than on a conventional engine.
What are the most common problems with the M177?
The most frequently reported issues are intake valve carbon buildup (inherent to all direct-injection engines), camshaft phaser wear linked to oil quality, and turbocharger oil line seepage from thermal cycling. Spark plug degradation is also common beyond 30,000–40,000 miles, especially on driven examples.
How long does the M177 engine last?
With disciplined maintenance, the M177 is capable of reaching 150,000 to 200,000 miles. AMG hand-assembly tolerances are tight, but longevity depends almost entirely on oil quality, service frequency, and warm-up habits. Engines that have been tracked heavily or tuned without supporting modifications will show wear earlier.
How does the M177 compare to its predecessor, the M156/M159?
The M156/M159 were naturally aspirated units beloved for their raw character and mechanical simplicity. The M177 surpasses both in outright power, efficiency, and throttle response, but introduces turbocharger complexity and greater sensitivity to maintenance. For pure mechanical drama, many purists prefer the old NA units — but for real-world performance, the M177 wins convincingly.
What is the tuning ceiling of the M177?
On the factory block with stock internals, 650–680 hp is a practical reliable ceiling for street use. With supporting modifications including a built bottom end and port injection, credible tuners have achieved over 900 hp on the M177 platform. The engine's architecture scales impressively, but costs escalate rapidly beyond Stage 2.
Can the M177 be used as a daily driver when tuned?
A Stage 1 or Stage 2 M177 remains entirely drivable as a daily driver. The ECU tune broadens the torque curve rather than peaking it, and the 9G-TRONIC transmission handles the added torque smoothly with a matching tune. Fuel economy will decrease, and spark plugs will require more frequent attention, but drivability is not meaningfully compromised at these stages.
Conclusion
The Mercedes-Benz M177 earns its reputation as one of the finest performance V8s of the modern era. Its motorsport-derived architecture, immediate throttle response, and strong tuning potential make it a compelling choice for enthusiasts and buyers alike.
Reliability score: 8/10 — Excellent when maintained, punishing when neglected.
Tuning score: 9/10 — One of the most responsive and scalable turbocharged V8s available from any manufacturer.
