Wireless Apple Carplay/Android Auto retrofit kit for Audi A5 S5 RS5 B8 (2007 to 2016)
Wireless Apple Carplay/Android Auto retrofit kit for Audi A5 S5 RS5 B8 (2007 to 2016) - HNAV (with MMI Navigation) is backordered and will ship as soon as it is back in stock.
Transform your Audi A5 B8 into a connected multimedia hub
Enjoy a connected driving experience where all your smartphone apps integrate seamlessly with your vehicle’s screen. No more juggling between your phone and dashboard—everything you need is easily accessible, safely, and distraction-free.
Navigation, communication, entertainment… Transform your Audi into a smarter, more intuitive car, making every journey simpler and more enjoyable.
- 1 Year-Guarantee
- Easy-Install
This step-by-step tutorial details the full installation process of a CarPlay and Android Auto interface module on an Audi A5 B8 equipped with the factory MMI system. The procedure preserves all original vehicle functions while adding modern smartphone integration features such as Apple CarPlay, Android Auto, and screen mirroring.
1. Overview of the Kit Components
Before starting, verify that your kit includes the following components:

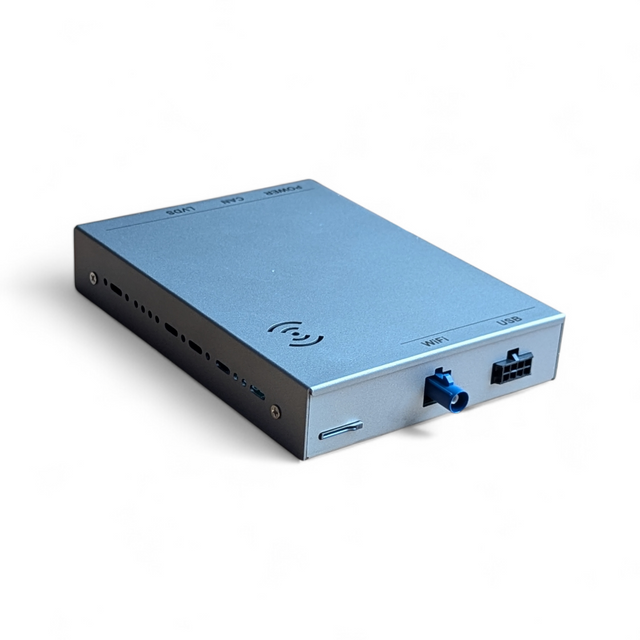

- The main interface module (metal control box with multiple ports)
- A main wiring harness with Quadlock connectors
- A gateway transfer harness
- An RCA + USB harness (optional for wired connection)
- LVDS video cables
Important:
The DIP switch configuration must match your screen size and resolution. Refer to the included chart in the user manual for more info.
2. Preparation and Safety
- Turn off the ignition and remove the key
- Disconnect the battery if preferred (recommended for safety) (Put your shifter in S Mode first)
- Protect trim surfaces using a cloth to avoid scratches
3. Glove Box Removal
To access the installation area:
- Remove five 8mm screws:
- 1 screw on the side of the dashboard (remove the cover first with a plastic lever)
- 3 screws inside the upper glove box
- 2 screws underneath the glove box
- Carefully lower and remove the glove box
This exposes a large workspace—Audi provides excellent access, making this installation relatively straightforward.
4. Removing the MMI Head Unit
- Shift the gear selector into Sport mode (for clearance)
- Insert the radio removal keys (flat side facing outward)
- Pull the MMI head unit out gently
- Using a plastic lever tool, gently pull the panel—it unclips easily
5. Disconnecting the Factory Connections
Quadlock Connector:
- Use a flathead screwdriver to lift the locking lever
- Disconnect the main Quadlock plug
- Plug the factory Quadlock connector into the new harness (lock it by lowering the lever)
- Connect the new harness back into the MMI head unit
LVDS Cable (Video Signal):
- Locate the LVDS port (usually the pink connector)
- Press the clip and remove the cable
- Connect the new cable between the OEM radio unit and our module
This creates a video bypass loop, allowing the module to inject CarPlay/Android Auto into your original multimedia system.
7. Gateway Harness Installation
- Locate the red connector
- Disconnect it by pressing the clip
- Insert it into the matching black connector
- Plug the remaining connector back into the original slot
This enables communication between the module and the vehicle system.
8. Optional USB & RCA Routing
If you want to have the option of using wired CarPlay/Android Auto:
- Route the USB cable under the glove box or center console
- Ensure easy access for the user
If not needed, you can skip this step since wireless connectivity is supported.
9. Cable Management
- Route all cables through the rear cavity behind the MMI unit
- Group wires using electrical tape
- Ensure no cables obstruct the head unit reinsertion
Proper cable management is essential for a clean and reliable installation.
10. Connecting the Module
Connect all components to the module:
- Quadlock harness
- LVDS cable
- Gateway harness
- Bolt-in the Wi-Fi antenna
Each connector is uniquely shaped, preventing incorrect installation.
11. Initial System Test
Before reassembly:
- Turn on ignition
- Press and hold the MEDIA button for 3 seconds
- Switch between:
- Factory MMI interface
- CarPlay / Android Auto interface
Confirm that:
- Display switches correctly
- System responds smoothly
12. Reassembly
Once testing is successful:
- Slide the MMI head unit back into place
- Remove the extraction keys
- Reinstall the climate control panel
- Secure the module behind the glove box
- Reinstall the glove box using the original screws
13. Pairing Your Smartphone
For Android Auto:
- Enable Bluetooth on your phone
- Connect to the device (typically named “CAR-XXXX”)
- Accept pairing request
- Android Auto launches automatically
For Apple CarPlay:
- Follow the same Bluetooth pairing process
- CarPlay will initialize automatically

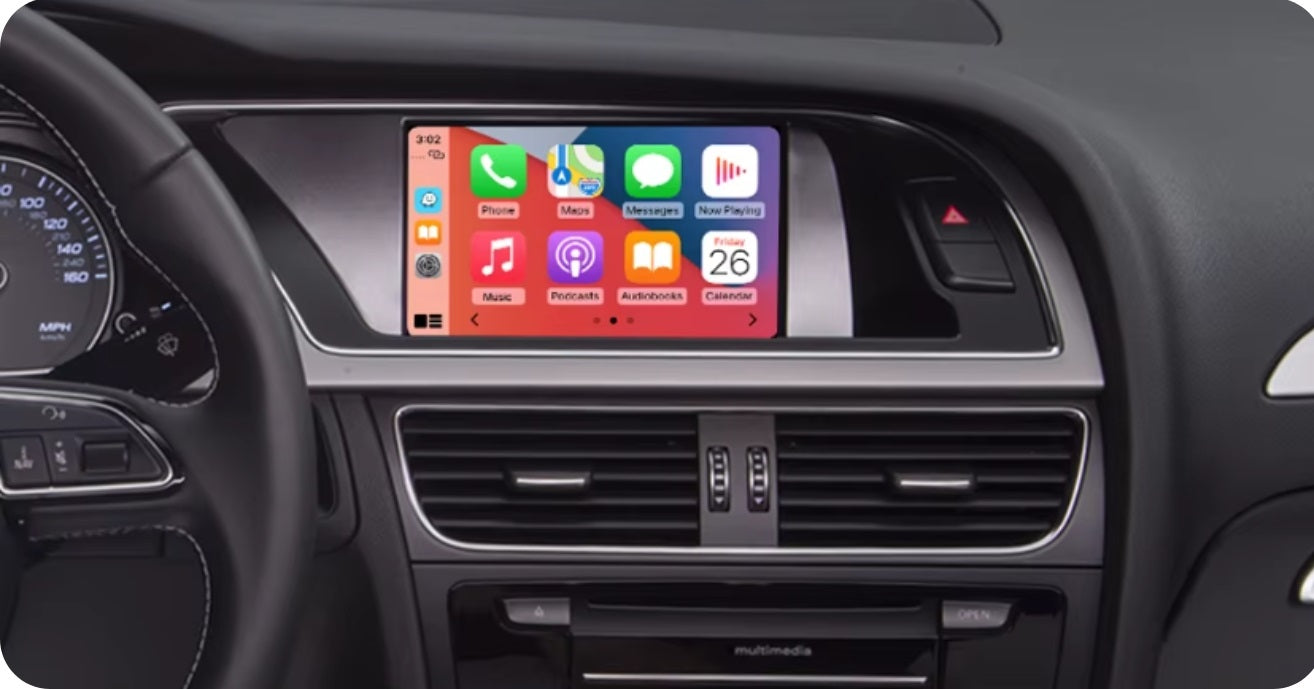

14. Final Result and Features
After installation, you gain access to:
- Wireless Apple CarPlay and Android Auto
- Navigation apps (Google Maps, Waze, Apple Maps)
- Music streaming and podcasts
- Phone calls and messaging
- Screen mirroring (depending on device compatibility)
All of this works seamlessly while retaining the original Audi MMI interface.
Complete wiring diagram
📖 User Manual Included
Download the full user and installation guide as a PDF with step-by-step photos and detailed diagrams.
⬇️ Download the User Manual (PDF)Size: 2.5 MB | Format: PDF | Pages: 12
YOUR MUSIC EVERYWHERE
Experience immersive multimedia with full compatibility with top streaming apps. Whether you love music, podcasts, or videos, our CarPlay/Android Auto module for Audi A5 B8 gives you direct access to all your favorite content on your original vehicle screen. Spotify, Apple Music, Deezer, and Amazon Music integrate flawlessly, delivering optimal sound quality through your Audi’s speakers.
Enjoy the native interface of music apps with the ability to browse playlists, albums, and radio stations without touching your smartphone.
WATCH YOUR FAVORITE VIDEOS
In addition to music, this module supports YouTube and other video platforms—perfect for enjoying visual content while parked. Whether you’re waiting for an appointment or keeping passengers entertained, you can watch high-definition videos with top-quality sound.
With plug & play integration and compatibility with steering wheel controls and the MMI touchpad, switching between apps and adjusting volume is effortless.
CONNECTED NAVIGATION
Say goodbye to traffic jams and outdated information! With Google Maps, Waze, or Apple Maps, you get real-time GPS navigation displayed directly on your Audi A4 B8 screen.
Enjoy live traffic updates, optimized routes, and alerts for speed limits and speed cameras. Whether driving in the city or on the highway, your navigation is smooth and precise. No need to handle your phone—control everything via steering wheel buttons, the MMI touchpad, or Siri/Google Assistant voice commands.
YOUR VOICE ASSISTANT
With Siri (CarPlay) and Google Assistant (Android Auto) integration, you stay in control without taking your eyes off the road or hands off the wheel. Need to send a message, make a call, or set a route? Just say "Hey Siri" or "Hey Google" to activate your voice assistant.
You can also ask it to read notifications, play your favorite playlist on Spotify or Apple Music, or find a gas station on Google Maps.
STAY IN CONTROL
Our module allows you to operate functions via the original Audi radio buttons, touchscreen, steering wheel voice control, and central touchpad, offering an intuitive and personalized driving experience.
OEM REVERSE CAMERA COMPATIBILITY
Installing our CarPlay/Android Auto module for the Audi A5 B8 keeps your original reverse camera functionality. When shifting into reverse, the display automatically switches to the camera feed, including guidelines if your vehicle is equipped.
Enjoy optimal parking assistance while benefiting from modern CarPlay and Android Auto features. Get the best of both worlds: advanced connectivity without compromising your Audi’s original equipment!
KIT CONTENTS
- CarPlay/Android Auto Module
- Complete Wiring Harness
(Box color and wiring may vary depending on the model selected)
AVAILABLE VERSIONS
Different modules are available depending on your multimedia system:
- HNAV Version
- BNAV Version
- HN Version
- Audi Concert or Symphony
How to Check Your Car’s System Version:
1. Press the "Setup" or "Menu" button on your radio.
2. Go to "Settings."
3. Scroll down to "Version Information."
4. Look for the first letters and numbers of the software version:
For Audi Concert/Symphony systems, you can check your vehicle compatibility by looking at the center console:
Our team is available for any questions regarding installation and compatibility. We also provide a complete installation guide in English upon purchase.
