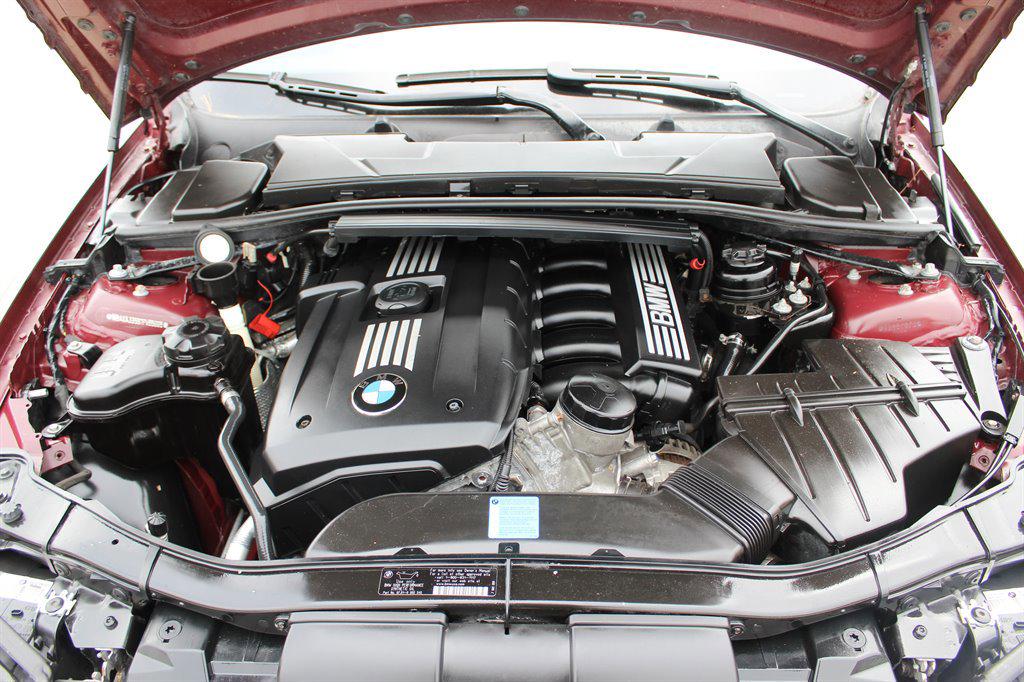

The BMW N52 is a naturally aspirated inline-six engine that defined the mid-2000s BMW driving experience. Produced from 2004 to 2015, it succeeded the beloved M54 and represented a significant technological leap — introducing a magnesium-aluminum composite block, Valvetronic variable valve lift, and Double-VANOS variable camshaft timing as standard features. The result was an engine that delivered strong performance with meaningful efficiency gains for its era.
The N52 powers a wide range of chassis including the E90 3 Series, E60 5 Series, E85 Z4, and E83 X3, making it one of the most widely distributed BMW engines in the modern era. For enthusiasts and everyday drivers alike, it strikes a compelling balance between linear power delivery, mechanical refinement, and a naturally aspirated character that later turbocharged engines could not fully replicate.
Whether you are buying a used BMW powered by the N52, planning maintenance on one you already own, or exploring its tuning potential, this guide covers everything you need to know.
Parts & Accessories
Your BMW N52 deserves better.
Hand-picked performance and replacement parts — ready to ship.
Shop BMW N52 parts →Specs & Versions
Base Specifications
| Spec | Details |
|---|---|
| Type | Inline-6, naturally aspirated |
| Displacement | 2.5L (2,497 cc) / 3.0L (2,996 cc) |
| Block | Magnesium-aluminum composite |
| Head | Aluminum |
| Valvetrain | DOHC, 24-valve, Valvetronic + Double-VANOS |
| Injection | Sequential multi-point fuel injection (MPI) |
| Production years | 2004–2015 |
N52B25 — 177 hp / 175 lb-ft
The N52B25 is the 2.5-liter entry variant, fitted to lower-specification trims across several key platforms. It delivers a smooth, linear powerband suited to everyday driving.
| Model | Chassis | Years |
|---|---|---|
| 323i | E90, E91, E92, E93 | 2006–2011 |
| 523i | E60, E61 | 2005–2010 |
| X3 2.5si | E83 | 2006–2010 |
| Z4 2.5si | E85, E86 | 2006–2008 |
| 128i | E82, E88 | 2008–2013 |
N52B30 — 215–255 hp / 185–220 lb-ft
The N52B30 is the 3.0-liter flagship variant of the family, offered in multiple states of tune depending on market and application. It is the most sought-after version among enthusiasts for its balance of power and tractability.
| Model | Chassis | Years |
|---|---|---|
| 325i / 328i | E90, E91, E92, E93 | 2006–2013 |
| 525i / 528i | E60, E61 | 2005–2010 |
| 630i | E63, E64 | 2004–2010 |
| 730i / 730Li | E65, E66 | 2005–2008 |
| X3 3.0si | E83 | 2006–2010 |
| Z4 3.0si / Z4 3.0i | E85, E86 | 2006–2008 |
| 128i / 135i (base) | E82, E88 | 2008–2013 |
| 528i | F10 | 2011–2016 |
| 328i | F30 | 2012–2015 |
How to check a used N52-powered car's history
Before buying any used car equipped with the N52, it is essential to ensure full transparency about its past. Undisclosed accidents and hidden mechanical abuse can directly compromise safety and reliability. A bent subframe, a poorly repaired cooling system, or a botched oil leak repair are far more common than sellers will admit, and they rarely show up on a visual inspection alone.
The N52 is particularly susceptible to issues that arise from deferred maintenance, such as neglected valve cover gasket replacements, irregular oil service intervals, or unresolved Valvetronic eccentric shaft wear. Additionally, some owners have performed amateur tuning or software modifications that can stress components not designed for sustained higher output on a naturally aspirated platform. Knowing a car's full service and ownership history is the only way to gauge whether these risks are present. It is strongly recommended to check the vehicle's complete history using its license plate or VIN number before any purchase decision.
Get an instant 20% discount to access a vehicle's full past with total transparency via carVertical by clicking this link or on the banner below:
Key Strengths
The N52 earns its strong reputation through a combination of engineering ambition and day-to-day dependability. Its magnesium-aluminum composite block was a world first at the time of launch, reducing weight significantly compared to the all-aluminum M54 it replaced — a meaningful gain in a front-heavy inline-six application.
Valvetronic variable valve lift eliminates the traditional throttle butterfly at steady-state cruise, reducing pumping losses and improving fuel economy without sacrificing throttle response. Combined with Double-VANOS on both camshafts, the N52 delivers a broad, usable powerband that feels eager from low rpm and pulls cleanly to its redline.
From a reliability standpoint, the N52 is widely regarded as one of the more durable modern BMW engines when properly maintained. It lacks the rod bearing vulnerabilities that plague its turbocharged N54 and N55 successors, and its naturally aspirated nature means fewer pressurized oil and coolant circuits to fail. Aftermarket support is excellent, with a mature ecosystem of OEM-quality replacement parts available for every known wear item.
For buyers researching E90-generation cars, the BMW 3 Series (E90/E92) Reliability Guide is a useful companion resource.
Known Reliability Issues
Valve Cover Gasket Oil Leak
Symptom: Oil smell from the engine bay, visible oil residue on the top of the engine or on the spark plug tubes, occasional misfires from oil-fouled spark plugs.
Cause: The valve cover gasket and spark plug tube seals are made from rubber that hardens and shrinks with age and heat cycling. On the N52 this is an expected wear item rather than a design defect.
Severity: Moderate
Typical mileage: 60,000–100,000 miles
Note: This is one of the most common N52 repairs. Replacing the gasket and tube seals simultaneously is recommended, as labor overlap makes splitting the jobs uneconomical.
Valvetronic Eccentric Shaft Sensor Failure
Symptom: Rough idle, hesitation on throttle tip-in, check engine light with fault codes related to Valvetronic (typically 2A82 or 2A87).
Cause: The eccentric shaft sensor monitors the position of the Valvetronic actuator. The sensor or its wiring connector degrades over time, sending incorrect position data to the DME.
Severity: Moderate
Typical mileage: 70,000–120,000 miles
Note: Sensor replacement is straightforward and relatively inexpensive. Ignoring the fault can lead to limp mode. Always inspect the wiring harness connector for corrosion before condemning the sensor itself.
Electric Water Pump Failure
Symptom: Overheating warning, coolant temperature fluctuation, check engine light, reduced cabin heat output.
Cause: The N52 uses an electric water pump rather than a belt-driven unit. The pump's internal electronics are prone to failure, particularly on higher-mileage examples or those that have experienced sustained high coolant temperatures.
Severity: Critical
Typical mileage: 60,000–90,000 miles
Note: BMW's electric water pump is a well-documented failure point across the N52 and its siblings. Proactive replacement at around 80,000 miles is widely recommended in the enthusiast community. Always replace the thermostat at the same time given the shared coolant circuit.
VANOS Solenoid Wear and Rattle
Symptom: Cold-start rattle from the front of the engine, rough idle when cold, fault codes for VANOS timing on intake or exhaust cam.
Cause: The Double-VANOS solenoids and associated seals wear over time, particularly if oil changes have been neglected. Sludge buildup restricts oil flow to the VANOS actuators, causing sluggish or incorrect cam phasing.
Severity: Moderate
Typical mileage: 80,000–130,000 miles
Note: Cleaning or replacing the VANOS solenoids and using a quality 5W-30 full synthetic oil on strict intervals resolves most cases. Persistent rattle after solenoid service may indicate worn VANOS hub splines.
Crankcase Ventilation System (CCV) Failure
Symptom: Oil consumption, white smoke from exhaust under light load, rough idle, oil in the intake tract.
Cause: The CCV (crankcase ventilation) system uses a plastic housing with an internal membrane that hardens and cracks in cold weather. A failed CCV allows crankcase pressure to build and force oil past seals and into the intake.
Severity: Moderate
Typical mileage: 60,000–100,000 miles
Note: CCV failure is common in colder climates. Replacement of the entire CCV assembly is the correct repair. Inspecting the oil separator and associated hoses at the same time is recommended.
Coolant System Plastic Component Degradation
Symptom: Coolant leaks, overheating, visible cracking at hose junction points and the expansion tank.
Cause: The N52 uses numerous plastic coolant components including the expansion tank, thermostat housing, and coolant pipe fittings. These plastics become brittle over time and under sustained heat.
Severity: Critical if left unaddressed
Typical mileage: 80,000–120,000 miles
Note: A proactive coolant system refresh — replacing the expansion tank, thermostat, water pump, and hose fittings together — is one of the best investments for any high-mileage N52.
Maintenance Schedule
| Service | Interval |
|---|---|
| Engine oil and filter change | Every 5,000–7,500 miles (do not follow BMW's extended 15,000-mile OLM interval) |
| Spark plugs | Every 30,000–45,000 miles |
| Air filter | Every 30,000 miles |
| Cabin air filter | Every 20,000 miles |
| Coolant flush | Every 3 years / 45,000 miles |
| Transmission fluid (auto) | Every 50,000 miles |
| Brake fluid | Every 2 years |
| Electric water pump inspection | At 80,000 miles, replace proactively |
| Valve cover gasket | Inspect from 60,000 miles, replace on first sign of seepage |
Recommended oil spec: BMW LL-01 certified 5W-30 full synthetic (e.g., Mobil 1, Castrol Edge, or Liqui-Moly Leichtlauf). Avoid extended OEM drain intervals on older, high-mileage engines.
Tuning Potential
The N52 is a naturally aspirated engine, which imposes real limits on power gains compared to forced-induction platforms. However, there is meaningful headroom for enthusiasts who want more engagement without forced induction.
| Stage | Modifications | Estimated Power |
|---|---|---|
| Stage 0 (baseline) | Stock N52B30 | 225–255 hp |
| Stage 1 | ECU tune (DME flash), cold air intake, upgraded exhaust | 255–275 hp |
| Stage 2 | Headers, high-flow catalysts, aggressive cam timing via tune | 275–295 hp |
| Stage 3 | Individual throttle bodies (ITBs), ported head, lightweight rotating assembly | 310–330 hp |
Recommended first modifications in priority order:
- DME software tune — the single highest return-on-investment modification; unlocks Valvetronic and VANOS mapping
- Cold air intake — improves throttle response and top-end breathing
- Catback exhaust — reduces backpressure and transforms the inline-six soundtrack
- Headers / exhaust manifold — meaningful top-end gains, requires tune to maximize benefit
- Individual throttle bodies (ITBs) — for enthusiasts targeting maximum naturally aspirated output
The N52 has no turbocharger to limit fueling scalability, but the stock injectors and fuel rail become limiting factors beyond approximately 290 hp on naturally aspirated builds. The magnesium-aluminum composite block is not well-suited to forced induction retrofits without significant reinforcement. Cooling capacity is adequate for naturally aspirated Stage 1–2 builds but should be upgraded with a quality aluminum radiator before Stage 3.
FAQ
Is the BMW N52 a reliable engine?
Yes, the N52 is broadly considered one of the more reliable modern BMW inline-six engines, particularly compared to its turbocharged N54 and N55 successors. Properly maintained examples routinely exceed 200,000 miles. The key is consistent oil changes and proactive replacement of known wear items such as the water pump, valve cover gasket, and CCV assembly.
What are the most common N52 problems?
The most frequently reported issues are valve cover gasket oil leaks, electric water pump failure, Valvetronic eccentric shaft sensor faults, and crankcase ventilation system degradation. None of these are catastrophic if addressed promptly, but neglecting them — especially the water pump — can lead to overheating and serious engine damage.
How long does an N52 last?
With proper maintenance, an N52 is capable of lasting 200,000 to 250,000 miles. The most important factors are strict oil change intervals (no more than 7,500 miles), use of quality BMW LL-01 rated synthetic oil, and timely replacement of cooling system components. Engines run on extended OEM drain intervals often develop VANOS sludge and CCV failures much earlier.
How does the N52 compare to the M54 it replaced?
The M54 is simpler mechanically — it uses a conventional throttle body rather than Valvetronic and has an all-aluminum block rather than the magnesium-aluminum composite of the N52. The M54 is often considered marginally easier to work on and has fewer electronic failure points. The N52 offers better power, efficiency, and refinement, but its additional complexity means more potential failure modes. For a deep look at M54-powered cars, see the BMW M54 Engine Guide.
What is the tuning ceiling for the N52?
On a naturally aspirated build, a well-prepared N52B30 can reach approximately 310–330 hp with individual throttle bodies, head work, and a supporting tune. Beyond this point, the cost-per-horsepower ratio becomes unfavorable. Forced induction conversions are possible but require substantial supporting modifications and are not widely supported by established tuners due to the composite block's structural characteristics.
Is the N52 good as a daily driver when tuned?
Stage 1 and Stage 2 N52 builds make excellent daily drivers. The DME tune and intake/exhaust modifications sharpen throttle response without sacrificing idle quality, fuel economy, or low-rpm drivability. The Valvetronic system continues to optimize part-throttle efficiency even after a tune. Stage 3 ITB builds become more temperamental at idle and in traffic and are better suited to dedicated weekend use.
Conclusion
The BMW N52 earns a reliability score of 7.5/10 — higher than many modern BMW engines thanks to its naturally aspirated simplicity, but held back slightly by its electronic complexity and a handful of recurring maintenance items. Its tuning score is 6/10, reflecting real but ultimately limited naturally aspirated headroom. For buyers seeking a refined, characterful inline-six with proven longevity and strong parts availability, the N52 remains one of the most rewarding engines in BMW's modern catalog. Browse our parts catalog to find everything you need to maintain or build your N52-powered BMW.
