Wireless Apple CarPlay/AndroidAuto retrofit kit for Mercedes CL Class C216 (2006-2013)
Wireless Apple CarPlay/AndroidAuto retrofit kit for Mercedes CL Class C216 (2006-2013) - NTG 3.0 is backordered and will ship as soon as it is back in stock.
1. Confirm system compatibility
Before starting, verify your head unit type. On the Mercedes-Benz CL (CL216), NTG 3.0 systems typically use the large rectangular slot, while NTG 3.5 uses an SD card-style slot.
Your kit is a CarPlay interface module designed to enable Apple CarPlay on the OEM system. Check that you have:
- CarPlay interface box (NTG 3.0 compatible)
- LVDS cables
- MOST fiber adapters
- AUX audio integration cable
- USB extension
- Optional: microphone + camera inputs
Turn off ignition and disconnect power if possible before starting.
2. Remove the head unit from the dashboard
Start by accessing the factory radio unit:
- Use a plastic lever to carefully pop off the bottom panel
- Remove the 2 bottem T20 screws
- Use a small flat screwdriver to pop open the 2 small latches covering the upper screws holding the radio tray in place, then unscrew them.
- Gently slide the folding tray towards the back of the car.
- This will now uncover 4 more screws holding the radio unit.
This is one of the simplest Mercedes head unit removals, as the unit comes out straight forward once screws are removed.
3. Identify and disconnect OEM wiring
Behind the unit you will find:
- MOST fiber optic loop (purple connector)
- LVDS video cable (screen connection)
- Factory power harness
- AUX input (required for audio playback)
Carefully disconnect:
- LVDS screen cable
- Main power harness
Be gentle with fiber optics—do not bend sharply.
4. Install the CarPlay interface module
- Connect the Video cable:
Screen → CarPlay box (VIDEO IN)
CarPlay box → head unit (VIDEO OUT)
IMPORTANT: You need to unplug the fiber-optic 2 way connector. It is easily identifyable as its wires are purple.
- Using a small flat screwdriver, unclip it from the large power connector:
- Now you need to plug it back into the Carplay module's own connector as follows;
- Plug the Carplay module's harness (Power, Video connectors)
Ensure all connectors click firmly. Incorrect LVDS orientation will result in no display.
5. First power-on test & dip switch configuration
Before reassembling:
- Turn ignition ON
- Check boot screen of interface
- If no signal, verify LVDS orientation and fiber optic connection
If the image doesn't show properly, adjust DIP switches according to module label (varies by firmware, often “NTG 3.0 / 8+8 special”)
- Confirm system boots into OEM menu + CarPlay interface
Once successful, connect your phone and verify wireless CarPlay pairing works.
6. Reassemble, route cables, and final test
Once everything is connected:
- Tuck and secure all wiring behind the radio unit
- Reinstall radio unit and trim panels
- Tighten all the screws and put all the clips back in place
Final checks:
- CarPlay boots automatically on AUX input
- Steering wheel controls function (volume, track, mode switching)
- Reverse camera activates when shifting into reverse
- Audio plays through AUX (important step)
At this stage, the system should function as a fully integrated OEM-style Apple CarPlay upgrade inside your Mercedes-Benz S-Class (W221).
Upgrade Your Mercedes CL C216 with our Aftermarket Apple CarPlay & Android Auto retrofit kit
Bring your Mercedes CL C216 (2006–2013) into the modern age with our advanced CarPlay & Android Auto retrofit module. Designed for a clean, factory-style installation, this plug & play system unlocks the full power of your smartphone — right from your original screen.
Enjoy a smooth, wireless experience with easy access to music, navigation, messages, calls, and more — all without replacing your original head unit or modifying your car. The result? A smart, secure, and intuitive infotainment upgrade that blends perfectly into your dashboard.

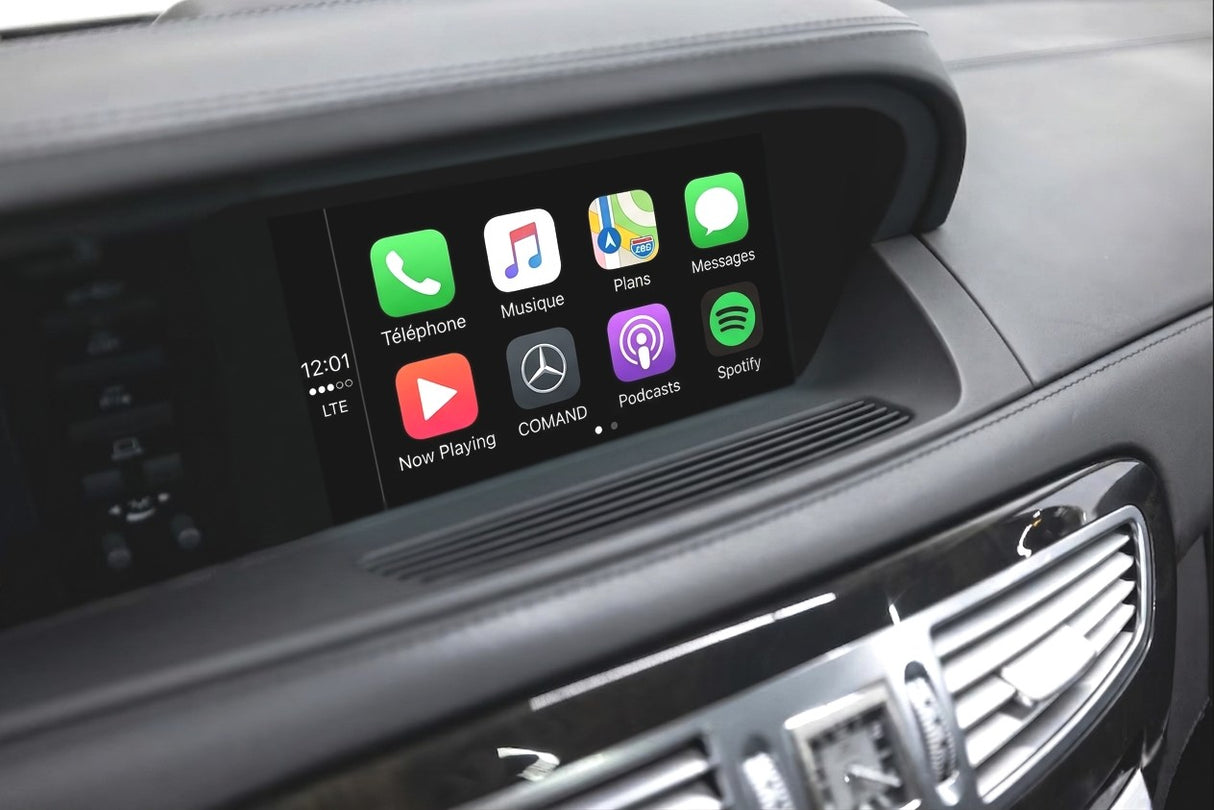

Your Favorite Apps on Your Original Mercedes Screen
Whether you use an iPhone or Android device, this system brings your favorite apps to life directly on your Mercedes display. Access Spotify, Apple Music, Google Maps, Waze, WhatsApp, Podcasts, YouTube, and more — all without ever needing to reach for your phone.
The interface mirrors your mobile experience while keeping everything safe and driver-friendly. Browse playlists, take calls, reply to messages, or start navigation in just a few taps — all while keeping your hands on the wheel.
Smart Navigation with Real-Time Updates
Enjoy powerful navigation with real-time traffic, voice commands, and turn-by-turn directions through Google Maps, Waze, or Apple Maps. Say goodbye to clunky phone holders and tangled cables — this system transforms your factory screen into a fully integrated GPS hub.
Get live traffic updates, radar alerts, voice-activated route planning, and crystal-clear visuals — all displayed beautifully on your Mercedes screen.
Premium Multimedia & Streaming
Stream your favorite content on the go with full support for Spotify, Apple Music, Deezer, YouTube, and more. Audio plays through your original car speakers, including Harman Kardon systems, delivering premium sound quality without compromise.
You can control your music, switch tracks, or even start a video — no need to touch your phone. Perfect for road trips, commutes, or keeping your passengers entertained.
Siri & Google Assistant Integration
Stay focused on the road while keeping full control of your apps. With built-in voice assistant support, you can activate Siri or Google Assistant from your steering wheel or via voice command.
Send texts, make calls, launch playlists, or ask for directions — all without taking your eyes off the road. It’s convenience, safety, and modern tech working together.
Full Compatibility with Your Original Mercedes Features
Our system is 100% compatible with your factory settings and controls:
- Retains full access to the original NTG system menu
- Works with your steering wheel controls
- Compatible with your CD player
- Supports standard audio and Harman Kardon systems
- Keeps your original iDrive-style knob and buttons functional
- Fully integrates with your OEM reverse camera, including dynamic guidelines
OEM Reverse Camera Compatibility
When you shift into reverse, your screen will automatically switch to the original backup camera view — including moving guidance lines, if equipped. You keep all the factory features you love, now enhanced with modern connectivity.
What’s in the Box
- Apple CarPlay / Android Auto module
- Power cable
- RCA/USB cable
- LVDS video cable
- Antenna
- Detailed installation guide
Vehicle Compatibility
To ensure perfect integration with your Mercedes CL, it is important to select the correct module version for your specific system.
Important: Your vehicle must be equipped with an AUX input or TV function for the module to work properly.
Not sure which system you have?
Check the interface of your Mercedes head unit to identify your version:
- Mercedes NTG 3.0 (no SD card slot)
- Mercedes NTG 3.5 (with SD card slot)
If you're unsure which NTG system your vehicle uses, just check the home screen of your original infotainment system — or contact us and we’ll help you identify it.
