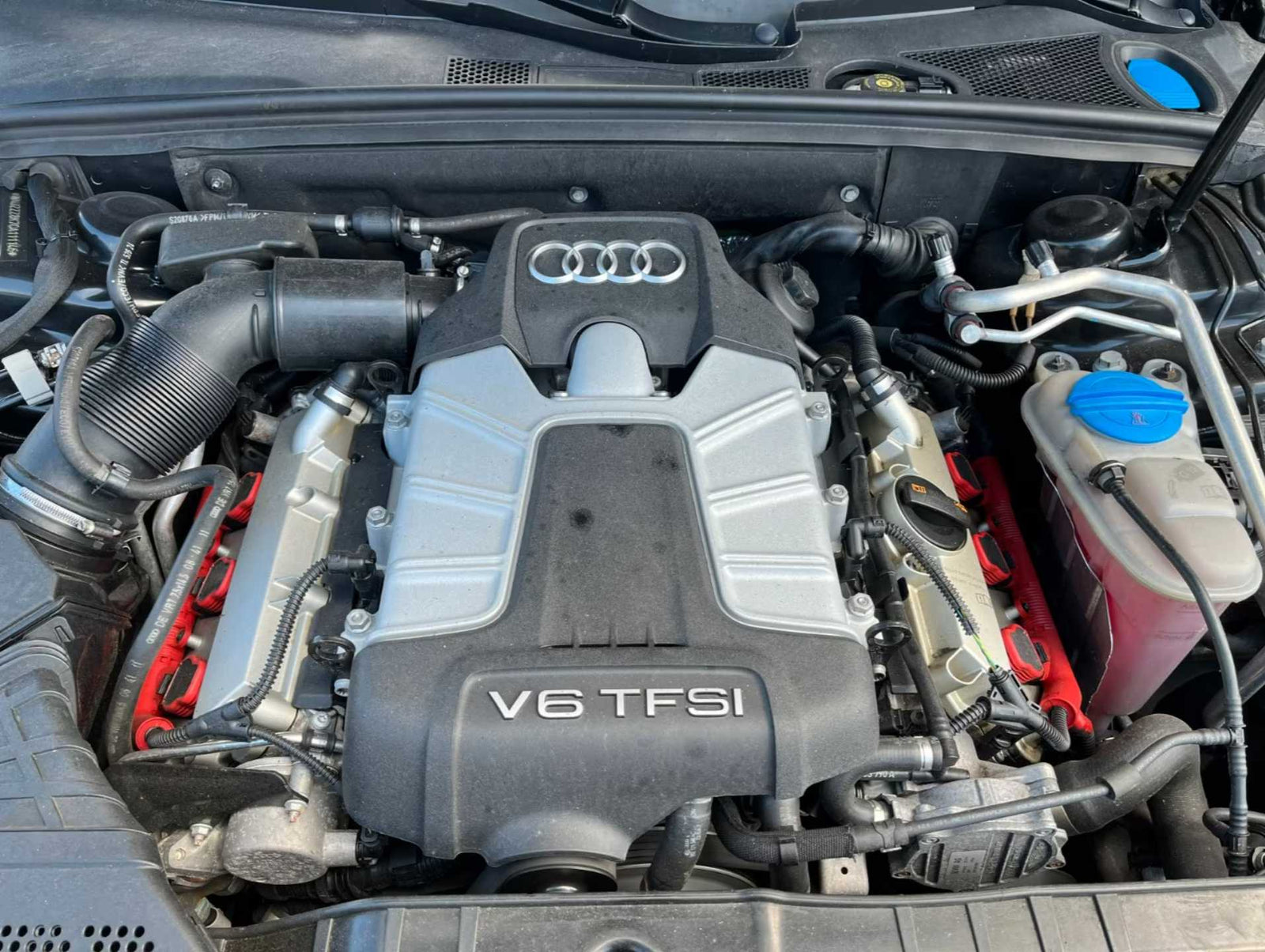

The Audi EA837 is the supercharged generation of Audi's legendary 3.0 TFSI V6, produced during a particularly exciting era for the brand's performance lineup. Sitting at the heart of the B8-generation S4, the S5 8T, the SQ5 8R, and the 3.0T variants of the A6 and A7, this engine earned a devoted following for its mechanical refinement, linear power delivery, and remarkably broad aftermarket support.
Unlike turbocharged rivals, the EA837's Roots-type supercharger gives it an instantly recognizable throttle response and a smooth, lag-free powerband that many enthusiasts still prefer over the twin-turbocharged EA839 that replaced it. The supercharger whine has become almost a signature sound for the B8 S4 community. With strong factory outputs, a robust short-block, and a well-understood set of quirks, the EA837 remains one of the most interesting and tunable V6 engines in the Volkswagen Group catalog. Whether you are shopping for a used S4 or chasing track power, understanding this engine in depth is essential.
Parts & Accessories
Your Audi EA837 deserves better.
Hand-picked performance and replacement parts — ready to ship.
Shop Audi EA837 parts →Specs & Versions
Base Specifications
| Specification | Detail |
|---|---|
| Type | V6, 90° bank angle |
| Displacement | 2,995 cc (3.0 L) |
| Block | Aluminum alloy |
| Head | Aluminum alloy, DOHC per bank |
| Valvetrain | Timing chain, 24 valves |
| Injection | Direct injection (TFSI) |
| Forced induction | Roots-type supercharger |
| Production years | 2008 – 2016 (approx.) |
CGW — 333 hp / 325 lb-ft
The CGW is the high-output variant found in the core S4 and S5 performance models, delivering 333 hp at the crankshaft and representing the engine in its most sporting form. This is the code most commonly associated with B8 S4 performance builds.
| Model | Chassis | Years |
|---|---|---|
| Audi S4 | B8 | 2008–2016 |
| Audi S5 | 8T | 2007–2016 |
CTUA — 272 hp / 295 lb-ft
The CTUA is the detuned variant of the same supercharged 3.0 TFSI architecture, fitted to executive models where efficiency and refinement were weighted more heavily than outright performance. It shares the same fundamental architecture and supercharger layout as the CGW.
| Model | Chassis | Years |
|---|---|---|
| Audi A6 3.0T | C7 | 2011–2015 |
| Audi A7 3.0T | 4G | 2011–2015 |
| Audi SQ5 | 8R | 2013–2017 |
How to Check a Used EA837-Powered Car's History
Before buying any used car equipped with the EA837, it is essential to ensure full transparency about its past. Undisclosed accidents and hidden mechanical abuse can directly compromise safety and reliability, particularly on a high-performance vehicle that may have been driven hard or modified.
The EA837's known weak points make history verification especially important. A car with a history of aggressive driving, track use, or deferred oil changes may be hiding supercharger nose cone bearing wear, early timing chain stretch, or undisclosed tuning modifications that have been rolled back before sale. High-mileage examples — particularly above the 100,000-mile threshold — are at elevated risk for supercharger-related issues, and knowing the full service history is critical. It is strongly recommended to check the vehicle's complete history using its license plate or VIN number before any purchase decision.
Get an instant 20% discount to access a vehicle's full past with total transparency via carVertical by clicking this link or on the banner below:
Key Strengths
The EA837's greatest asset is its supercharger-fed throttle response. Where turbocharged engines build boost progressively, the Roots-type blower on this engine delivers pressure almost instantaneously, creating a driving experience that feels alive and direct from low rpm. This character made the B8 S4 and S5 particularly well-regarded in enthusiast circles even compared to more powerful competitors.
The short-block itself is genuinely robust. The aluminum block with its timing chain-driven valvetrain holds up well under sustained use, and reported catastrophic bottom-end failures are rare on engines that have been maintained correctly. The direct injection system is well-calibrated for the supercharged configuration, and the engine's aftermarket ecosystem — particularly in the US — is extensive, covering everything from supercharger pulleys to full bolt-on packages.
For buyers who prioritize a balance of daily usability and performance potential, the EA837 hits a strong middle ground. It is comfortable and refined at highway speeds, yet transforms into something considerably more exciting when pushed. Compared to the four-cylinder Audi EA888 found in lower-spec S-line models, this V6's soundtrack and delivery are in a different league entirely.
Known Reliability Issues
Supercharger Nose Cone Bearing Failure
Symptom: High-pitched whining or grinding noise from the front of the engine, particularly audible at idle and under light load. May progress to boost loss and reduced power.
Cause: The nose cone bearing — a small but critical component at the snout of the Roots-type supercharger — wears over time, especially when subjected to heat cycling and marginal lubrication. The bearing is not designed to be serviced independently in stock form, though the aftermarket has addressed this.
Severity: Critical
Typical mileage: 80,000 – 130,000 miles
Note: This is the single most well-documented failure mode on the EA837. Replacement typically involves either a factory remanufactured supercharger or an aftermarket nose cone rebuild kit. Many enthusiasts proactively address this during ownership rather than waiting for failure.
Timing Chain Wear and Tensioner Fatigue
Symptom: Rattling on cold start, particularly in the first few seconds before oil pressure builds. May trigger fault codes related to camshaft timing deviation.
Cause: The timing chain and its associated tensioners can stretch or lose tension over time, particularly when oil change intervals have been extended or when low-quality oil has been used. Cold-start rattle is the first warning sign.
Severity: Moderate to Critical (if ignored)
Typical mileage: 90,000 – 150,000 miles
Note: Consistent use of the correct 5W-40 or 0W-40 full synthetic oil and strict adherence to oil change intervals significantly reduces this risk. Catching tensioner wear early makes this a straightforward repair; ignoring it risks catastrophic timing failure.
Carbon Buildup on Intake Valves
Symptom: Rough idle, misfires under load, reduced throttle response, and elevated fuel consumption, typically worsening gradually over tens of thousands of miles.
Cause: As a direct injection engine, the EA837 does not spray fuel across the back of the intake valves. This allows oil vapors from the PCV (positive crankcase ventilation) system to accumulate as carbon deposits on the valve stems and seats, a well-known characteristic of GDI engines.
Severity: Moderate
Typical mileage: 60,000 – 100,000 miles
Note: Walnut blasting of the intake ports is the accepted remedy and is now a routine service item for high-mileage EA837 owners. Catch-can kits that reduce PCV oil vapor entering the intake are popular preventive upgrades.
Oil Consumption
Symptom: Gradual decline in oil level between service intervals, occasionally accompanied by light blue smoke under hard acceleration.
Cause: Some EA837 units exhibit higher-than-expected oil consumption due to piston ring tolerances and valve stem seal wear, particularly on higher-mileage examples. The supercharger itself also requires lubrication from the main oil circuit, adding to overall demand.
Severity: Minor to Moderate
Typical mileage: 70,000 miles and above
Note: Monitoring oil level every 1,000–1,500 miles is good practice on any high-mileage EA837. Consumption exceeding one quart per 1,000 miles warrants further investigation.
PCV System Failure
Symptom: Oil leaks around valve covers, rough idle, oil in the intake tract, and occasional boost-related codes.
Cause: The PCV diaphragm and associated one-way valves degrade over time, leading to improper crankcase pressure regulation. This accelerates carbon buildup and can force oil into areas of the intake system.
Severity: Moderate
Typical mileage: 80,000 – 120,000 miles
Note: PCV system components are relatively inexpensive. Replacing the entire PCV assembly proactively during a major service interval is recommended.
Maintenance Schedule
| Service | Interval |
|---|---|
| Engine oil and filter change | Every 5,000–7,500 miles (do not extend to OLM maximum) |
| Spark plug replacement | Every 30,000–40,000 miles |
| Supercharger nose cone inspection | Every 60,000 miles |
| Intake valve carbon cleaning (walnut blast) | Every 50,000–70,000 miles |
| Timing chain and tensioner inspection | Every 80,000 miles or at any cold-start rattle |
| PCV system inspection and replacement | Every 80,000–100,000 miles |
| Transmission service (S-tronic / Tiptronic) | Every 40,000–50,000 miles |
| Coolant flush | Every 50,000 miles or 5 years |
| Air filter | Every 20,000–25,000 miles |
Recommended oil spec: Audi-approved VW 502.00 / 505.00 full synthetic, 0W-40 or 5W-40 viscosity grade. Do not use conventional or lower-spec synthetic blends.
Tuning Potential
Stage Overview
| Stage | Modifications | Estimated Power |
|---|---|---|
| Stage 1 | ECU remap only | 375–390 hp |
| Stage 2 | ECU remap + intake + pulley (10–15% reduction) | 400–430 hp |
| Stage 3 | Smaller pulley + ported supercharger + upgraded fueling + tune | 450–480 hp |
| Stage 3+ | Methanol injection + intercooler upgrade + driveline upgrades | 490–520 hp |
Recommended First Modifications (in order of priority)
- ECU remap — the single best value upgrade; substantial gains on a stock engine
- Supercharger pulley (10–15% reduction) — increases supercharger speed and boost pressure
- Cold air intake or high-flow airbox — reduces inlet restriction and supports higher boost levels
- High-flow intercooler — manages charge temperatures at elevated boost
- Port injection addition (PI kit) — supplements direct injection to feed higher power levels and reduce carbon buildup simultaneously
- Upgraded spark plugs (one heat range colder) — essential before Stage 2 and above
Fueling and Cooling Limitations
The EA837's direct injection system begins to approach its fueling limits beyond approximately 430 hp without supplementary port injection. At Stage 3 and above, charge temperatures become the primary constraint — an upgraded front-mount or top-mount intercooler is not optional at this power level. The stock supercharger has a ceiling around 480 hp in highly modified form; beyond this, platform limitations and driveline stress become the governing factors.
FAQ
Is the Audi EA837 a reliable engine?
Yes, the EA837 is considered broadly reliable when properly maintained. The short-block is strong, and catastrophic failures are uncommon on engines with documented service histories. Its reliability reputation is somewhat conditional on addressing the supercharger nose cone bearing and timing chain before they become critical, which diligent owners do routinely.
What is the most common problem with the EA837?
The supercharger nose cone bearing is the single most reported failure. It typically manifests as a distinctive high-pitched whine and progresses to boost loss if left unaddressed. Most EA837 owners budget for this repair at some point beyond 100,000 miles, and the aftermarket has made it a well-understood and manageable fix.
How long does the EA837 last?
Well-maintained examples regularly exceed 150,000–200,000 miles without major mechanical failures. The key factors are strict oil change intervals, correct oil specification, and proactive attention to the supercharger and timing system. Neglected examples with extended oil change intervals tend to suffer timing chain and PCV issues that accelerate wear.
How does the EA837 compare to the EA839 that replaced it?
The EA839 uses twin-scroll turbos rather than a supercharger, producing more peak power in standard form and offering greater tuning headroom at higher stages. However, many enthusiasts prefer the EA837's instantaneous throttle response and more visceral character. The EA839 introduces its own failure modes including high-pressure fuel pump issues and water pump leaks, making neither generation clearly superior from a pure reliability standpoint.
What is the tuning ceiling for the EA837?
In practical terms, 450–480 hp represents the realistic ceiling for a supercharged EA837 on pump fuel with bolt-on modifications. Beyond this level, the stock supercharger, direct injection fueling system, and driveline components become the limiting factors. Many owners find Stage 2 at 400–430 hp to be the best balance of reliability, daily usability, and performance.
Can the EA837 be used as a daily driver when tuned?
Absolutely. Stage 1 and Stage 2 EA837 builds are among the more livable performance setups in this displacement class. The supercharger retains its low-rpm tractability, fuel economy remains acceptable for a performance V6, and the engine does not become temperamental with basic bolt-on modifications. Stage 3 and above requires more attention to fueling, cooling, and service intervals.
Conclusion
The Audi EA837 earns a reliability score of 7.5/10 — mechanically sound at its core, but with specific wear items that require proactive attention. Its tuning score is 8/10: the supercharged platform responds exceptionally well to ECU remapping and pulley work, delivering genuinely impressive power gains with well-understood modifications and a strong supporting aftermarket. For the enthusiast who values driver engagement and tuning accessibility alongside Audi build quality, the EA837 remains one of the most rewarding V6 platforms in the segment. Browse our parts catalog for EA837 components, supercharger rebuild kits, and performance upgrades.
