What Does "Air Suspension Malfunction" Mean on a Mercedes-Benz?

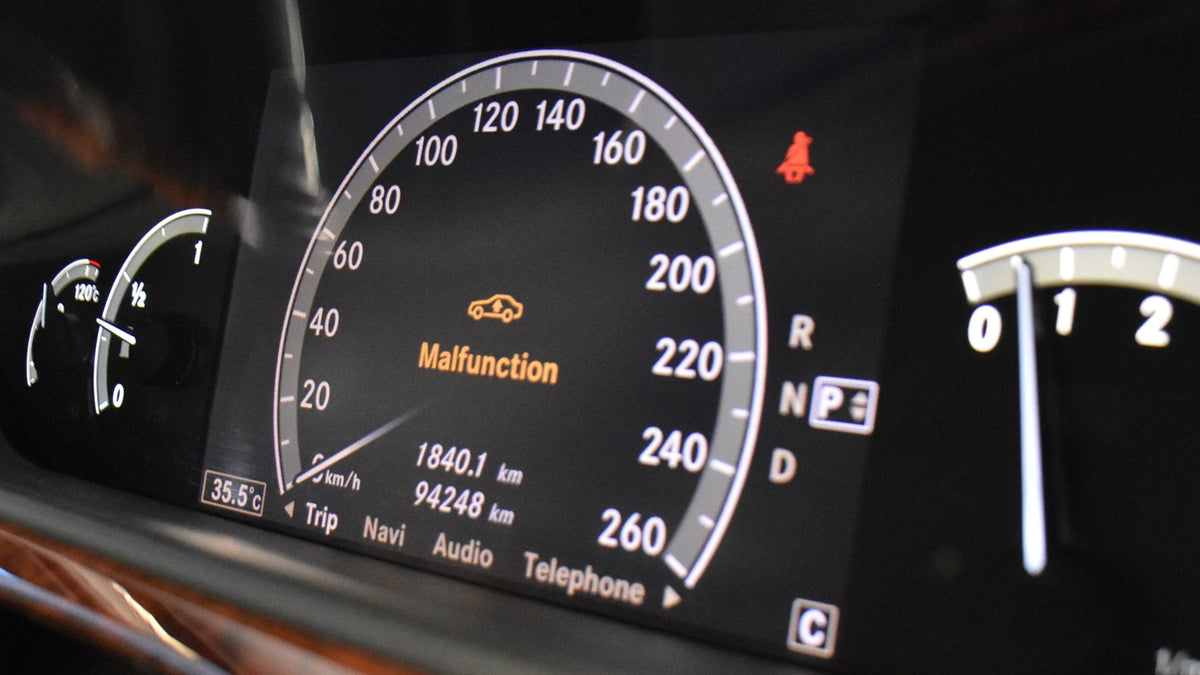

The Air Suspension Malfunction warning on a Mercedes-Benz indicates that the AIRMATIC system — Mercedes's electronically controlled air suspension — has detected a fault it cannot self-correct. This message appears in the instrument cluster or MBUX display and is accompanied in many cases by the vehicle sitting noticeably lower than normal, a stiff or unusually bouncy ride, or an audible compressor noise that won't stop. If you're searching for the cause of a mercedes air suspension malfunction, this guide covers every likely root cause, how to read the fault codes behind it, and what to do next.
The AIRMATIC system replaces conventional coil or steel springs with pressurized air struts and a central air supply unit (compressor). It continuously adjusts ride height and damping based on speed, load, and road conditions. When any sensor, valve, strut, or the compressor itself falls outside its expected parameters, the system logs a fault and triggers the Air Suspension Malfunction warning. This affects a wide range of models including the W222 S-Class, W213 E-Class, W205 C-Class (AMG variants), W166/W167 GLE, W253 GLC, and W464 G-Class. The EQS and EQE SUVs with E-ACTIVE BODY CONTROL can show a related variant of this warning as well.
Common Causes of Air Suspension Malfunction on a Mercedes-Benz
Failed or Worn Air Strut / Air Spring
The most frequent cause of a mercedes airmatic malfunction is a failed air strut or air spring bladder. The rubber bellows inside each strut degrades over time — especially in high-mileage or older vehicles — and develops micro-cracks that allow pressurized air to escape. When one corner loses pressure, the AIRMATIC control unit detects the height discrepancy through the level sensors and flags a fault. On the W222 S-Class and W213 E-Class, rear air strut failure is particularly common after 80,000–100,000 miles. A failed strut will often cause the affected corner to sag visibly overnight.
Faulty or Seized Air Supply Unit (Compressor)
The air supply unit — commonly called the AIRMATIC compressor — is responsible for pressurizing the entire system. Its internal piston rings, intake filter, and dryer cartridge wear out over time. A clogged dryer allows moisture into the system, which corrodes internal valve components. A seized or weak compressor cannot build sufficient pressure, causing the system to time out and log a fault. On the W166 GLE and W164 ML-Class, compressor failure is one of the top reported causes of the airmatic malfunction mercedes warning. You may hear the compressor running continuously or not at all as a symptom.
Defective Ride Height (Level) Sensor
Mercedes AIRMATIC relies on ride height sensors — one per corner on most platforms — to determine the current suspension position. These sensors are mounted on the lower control arm or axle and connected via a linkage rod that is prone to corrosion and snapping. A broken linkage or failed sensor sends an implausible signal to the Suspension Control Module (SCM), which immediately triggers the Air Suspension Malfunction warning. This is a relatively inexpensive repair but it is frequently misdiagnosed as a strut or compressor issue without first scanning for the specific fault code.
Leaking Solenoid Valve Block
The valve block (also called the solenoid valve assembly) routes compressed air to and from each individual air strut. Each solenoid controls one corner of the vehicle. Internal O-rings and seat seals inside the valve block deteriorate with age and heat cycling, causing slow air loss that the system cannot compensate for. This produces intermittent mercedes suspension malfunction warnings — particularly after the car has been parked overnight. On the W221 S-Class and W164/W166 platforms, valve block leaks are a well-documented failure point. An aerosol leak-detection spray around the valve block while the compressor runs can confirm this fault before replacing more expensive components.
AIRMATIC Control Module Fault or Communication Error
The AIRMATIC Electronic Control Unit (ECU) — integrated into the Suspension Control Module on newer platforms — can develop internal faults or lose communication with adjacent modules over the CAN bus. Wiring harness chafing, corroded connectors at the compressor relay, or a failed compression relay can all cause the module to log a communication fault rather than a hardware fault. On vehicles with MBUX, this can also appear alongside other chassis warnings such as ESP malfunction or ABC Malfunction on AMG models equipped with Active Body Control. Always scan for codes across all modules before condemning mechanical components.
What to Do When You See This Warning
When Air Suspension Malfunction appears, check the vehicle's ride height immediately. If one or more corners are visibly sagging, do not drive at highway speeds — the lowered strut may contact suspension components and cause additional damage. Reduce speed, avoid aggressive cornering, and get the vehicle diagnosed as soon as possible. On most Mercedes models, the system will default to a fixed ride height or the lowest position when a fault is active, which limits ground clearance. If the car has dropped completely to bump stops, have it transported rather than driven.
This warning should not be ignored or reset without diagnosing the root cause. Unlike a minor sensor glitch, air suspension faults often indicate a loss of pressure that will worsen over time. Continued operation with a compromised AIRMATIC system risks damaging the compressor (which runs continuously trying to compensate for a leak), accelerating air strut wear, and in severe cases, causing handling instability. Scan for fault codes immediately — this is the single most important diagnostic step before spending money on parts.
Don't Pay $100+ Just to Read a Fault Code
Mercedes stores specific fault codes behind this warning that won't show up without a scan. The Launch X431 CR319 reads Mercedes-specific codes in under 30 seconds — compact enough for the glove box, no subscription required.
→ Get the OBD2 ScannerHow to Diagnose Air Suspension Malfunction on a Mercedes-Benz
Diagnosing a mercedes benz air suspension malfunction correctly requires reading the exact fault code stored in the Suspension Control Module before touching any hardware. Guessing based on symptoms alone is how this repair gets expensive fast — a compressor replacement won't fix a failed ride height sensor, and a new strut won't fix a leaking valve block. Start with a scan, then work systematically.
Step 1: Scan for fault codes. Connect an OBD2 scanner capable of reading Mercedes-specific codes — not just generic P-codes — and pull all stored faults from the Suspension Control Module (SCM) and any related chassis modules. Note every code before clearing anything. The fault code will directly point to the affected corner, component, or circuit, saving significant diagnostic time.
Step 2: Perform a visual ride height inspection. With the vehicle on level ground and running, observe whether all four corners sit at equal height. A sagging corner indicates pressure loss at that strut or its associated solenoid valve. Cross-reference the sagging corner with the fault code to confirm the location. Also inspect the ride height sensor linkage rods at each corner for breakage or disconnection — this takes under five minutes and is frequently overlooked.
Step 3: Test the air supply unit and check for leaks. With the engine running, listen for the AIRMATIC compressor — it should cycle briefly and stop once target pressure is reached. Continuous running indicates a leak somewhere in the system. Apply soapy water or aerosol leak detector to the valve block, air line fittings, and each strut's air fitting. Bubbles will identify the leak point precisely. Also inspect the compressor's intake air filter and dryer cartridge — a saturated dryer indicates the system has been leaking for an extended period.
Step 4: Check wiring, connectors, and the compressor relay. Inspect the wiring harness running to the air supply unit, the valve block solenoids, and each ride height sensor. Look for chafed insulation, corrosion at connectors, and loose pins. The compressor relay — typically located in the rear SAM (Signal Acquisition Module) on W221/W222/W213 platforms — should be tested or swapped if the compressor shows no power. A failed relay can mimic a dead compressor at a fraction of the cost.
Mercedes-Specific Fault Codes Related to Air Suspension Malfunction
| Code | Description | Likely cause |
|---|---|---|
| C1514 | Left rear air spring — pressure too low / level sensor signal implausible | Failed left rear air strut, leaking valve block solenoid, or broken level sensor linkage |
| C1516 | Right rear air spring — pressure too low / level sensor signal implausible | Failed right rear air strut, leaking valve block solenoid, or broken level sensor linkage |
| C1541 | Air supply unit — compressor performance below threshold / overtemperature | Worn or seized AIRMATIC compressor, clogged intake filter, or saturated dryer cartridge |
| C1560 | Suspension control module — internal fault or CAN communication error | Failed Suspension Control Module, CAN bus fault, or corroded compressor relay |
FAQ — Mercedes Air Suspension Malfunction
Can I still drive my Mercedes with the Air Suspension Malfunction warning on?
Short distances at reduced speed are generally possible if the vehicle is sitting at a normal ride height and handling feels stable. However, if the car has dropped to bump stops at any corner, it should not be driven — suspension contact with bodywork or wheel wells can cause additional damage. Even if the car drives normally, the underlying fault will worsen over time, particularly if a compressor is running continuously trying to compensate for a leak. Get it scanned and diagnosed promptly.
How much does it cost to fix a Mercedes AIRMATIC malfunction?
Repair cost varies significantly by root cause. A ride height sensor linkage replacement typically runs $100–$250 in parts and labor. A valve block replacement ranges from $300–$700 depending on the platform. A single air strut replacement typically costs $500–$1,200 per corner at an independent shop, with dealer pricing higher. A full AIRMATIC compressor replacement averages $800–$1,500 installed. Always scan for the specific fault code first — it directly identifies the failed component and prevents unnecessary parts replacement.
Why does my Mercedes sit low in the morning but raise up after starting?
This is a classic symptom of a slow air leak — most commonly a cracked air spring bladder or leaking valve block solenoid. Overnight, with the system unpressurized, air bleeds past the failed seal and the affected corner sags. Once the engine starts and the AIRMATIC compressor runs, it refills the system and the car raises back to normal height. If the compressor can compensate quickly enough, no warning may appear initially — but the fault will eventually log once the leak exceeds the compressor's ability to keep up. Inspect and pressure-test the system before the compressor is damaged from overwork.
Which Mercedes models are most commonly affected by AIRMATIC malfunction?
The W221 S-Class (2006–2013) and W164 ML-Class (2006–2011) are historically the most frequently affected platforms due to age and mileage. The W222 S-Class, W213 E-Class, and W166 GLE see consistent AIRMATIC complaints in the 80,000–120,000 mile range. Front air strut failures are more common on the W205 AMG C63 and W213 E63 AMG variants. Mercedes vehicles with E-ACTIVE BODY CONTROL — such as the W223 S-Class and EQS SUV — can display a related suspension warning tied to the hydraulic actuator system rather than traditional AIRMATIC components.
