What Does "PDC Malfunction" Mean on a BMW?

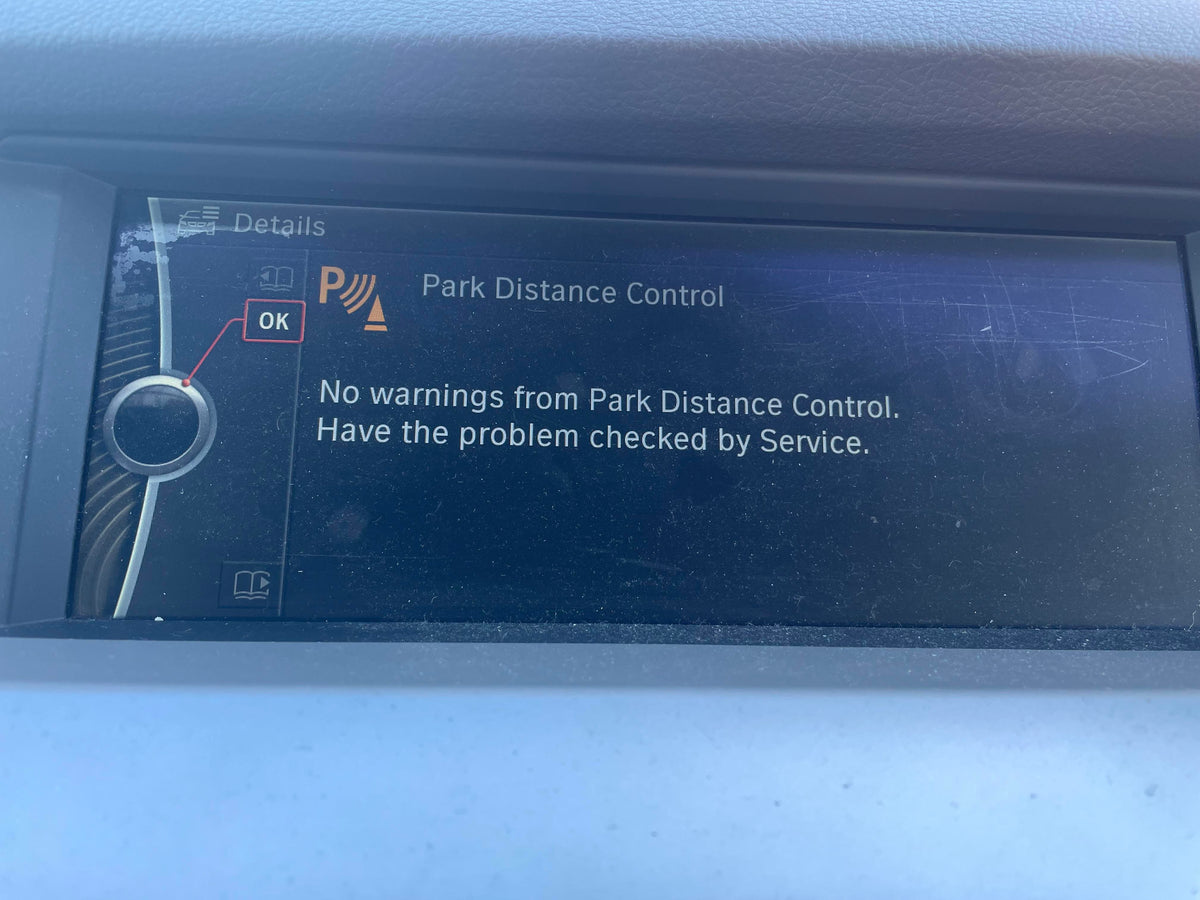

The PDC Malfunction warning appears on your BMW's iDrive display when the Park Distance Control (PDC) system detects a fault and can no longer guarantee accurate obstacle detection. When this message triggers, the PDC function — front, rear, or both — is disabled until the underlying fault is resolved. If you're searching for bmw pdc malfunction causes and fixes, this guide covers exactly what's happening and how to diagnose it.
BMW's Parking Distance Control system uses ultrasonic sensors embedded in the front and rear bumpers to measure proximity to obstacles, providing audible and visual warnings during low-speed maneuvering. The system is managed by a dedicated PDC control module and communicates over the vehicle's K-CAN or PT-CAN bus. A malfunction can originate from a single failed sensor, a wiring fault, a corrupted module, or interference from external conditions — all of which will kill the system and trigger this warning. On vehicles equipped with Active Park Distance Control (PDC with display), the visual overhead-view graphic will also go dark.
Common Causes of PDC Malfunction on a BMW
1. Failed or Damaged PDC Ultrasonic Sensor
This is the single most common cause of a bmw pdc system malfunction. Each sensor is a small ultrasonic transducer pressed into the bumper. They fail due to physical impact (even minor parking contact), water intrusion, or simply age-related degradation of the piezo element. A single failed sensor is enough to shut down the entire PDC system on most BMW platforms. Affected sensors can be front or rear, and the fault code will specify the exact sensor position — for example, rear left outer or front center right. Sensors are typically color-matched to the bumper and available individually.
2. Damaged or Corroded Sensor Wiring
The wiring harness that connects each PDC sensor to the PDC control unit runs through tight channels in the bumper and along the chassis. Stone chips, rodent damage, or chafing against bumper brackets can break the shielded cable or corrode the connector pins. A short to ground or open circuit in any sensor line will register as a fault. On F-series BMWs (F30, F10, F15) in particular, the rear bumper harness routing is a known weak point — the wires flex every time the bumper deflects, eventually causing micro-fractures.
3. PDC Control Module Fault
The PDC module (also called the Park Assist ECU) processes all sensor signals and outputs the distance warnings. Module failures are less common than sensor failures but do occur — particularly after water ingress into the trunk area or following a battery drain event that corrupts module memory. On vehicles where PDC is integrated into a combined TRSVC (Top Rear Service Center) module or combined with the surround-view camera controller (common on G-series platforms), a module fault can simultaneously disable multiple driver-assistance features.
4. Blocked or Contaminated Sensors
Ultrasonic sensors require a clear face to transmit and receive signals. Heavy accumulations of mud, snow, ice, or even thick aftermarket paint or vinyl wrap over the sensor face will cause signal dropouts that the module interprets as a hard fault. While the system typically recovers once the obstruction is cleared, repeated contamination events can cause the module to log a permanent fault requiring a scan-tool reset. This is a frequent cause of bmw pdc not working complaints in winter months, particularly in states that use road salt.
5. CAN Bus Communication Fault
The PDC system communicates with the instrument cluster, iDrive, and other chassis modules over the K-CAN bus. If a bus fault exists — caused by a failing module elsewhere on the network, a shorted CAN wire, or a faulty junction box (JBE) — the PDC module may lose communication and default to a malfunction state. This type of fault is less obvious because the PDC hardware itself may be perfectly functional. A full vehicle scan is necessary to identify CAN-related faults that cascade into the bmw parking distance control malfunction message.
What to Do When You See This Warning
When PDC Malfunction appears, the system has already deactivated. Your first action should be to check the bumper sensors visually — look for obvious physical damage, packed mud, or ice on the sensor faces. If the sensors appear clear and undamaged, do not assume the issue is minor. The fault is stored in the PDC module's memory and will not self-resolve without either clearing the obstruction or repairing the underlying hardware fault. Manually activate the PDC using the button (if equipped) and listen for the startup beep — if you hear nothing, the module has confirmed a hard fault.
This warning does not affect vehicle driveability and is not a safety emergency in the traditional sense — your engine, brakes, and steering are unaffected. However, driving without functioning PDC removes a key low-speed obstacle detection aid, which increases the risk of minor collision damage. Do not ignore this warning long-term. Scanning for fault codes is the critical next step: the stored codes will pinpoint exactly which sensor, circuit, or module is responsible, saving you from replacing parts blindly.
Don't Pay $100+ Just to Read a Fault Code
BMW stores specific fault codes behind this warning that won't show up without a scan. The Launch X431 CR319 reads BMW-specific codes in under 30 seconds — compact enough for the glove box, no subscription required.
→ Get the OBD2 ScannerHow to Diagnose PDC Malfunction on a BMW
Diagnosing a bmw pdc malfunction correctly requires a systematic approach. Generic OBD2 scanners typically cannot access BMW's PDC module — you need a tool that reads BMW-specific chassis and body control codes, not just powertrain codes. Once you have the fault codes in hand, the diagnosis becomes straightforward in most cases.
Step 1: Scan for fault codes. Connect a BMW-compatible scanner and read all stored faults in the PDC/Park Assist module. Note every code — a single sensor fault code points directly to the failed component, while multiple codes or CAN communication errors suggest a wiring or module-level issue. Record whether the codes are current or stored (intermittent), as this affects your repair strategy.
Step 2: Visually inspect all sensors and wiring. With the fault codes as a guide, inspect the flagged sensor(s) for physical damage, cracks in the housing, or paint overspray covering the face. Check the sensor connector for corrosion or bent pins. On rear sensors, pull back the trunk liner or bumper cover as needed to inspect the full harness run for chafing, cuts, or rodent damage.
Step 3: Test sensor resistance and voltage. Using a multimeter, measure resistance across the sensor terminals — a healthy BMW PDC sensor typically reads between 10 kΩ and 40 kΩ depending on the sensor generation. An open circuit or shorted reading confirms sensor failure. Also verify that the PDC module is supplying correct operating voltage (nominally 12V supply and clean ground) to the sensor harness connector.
Step 4: Clear faults and retest. After completing any repairs, clear all PDC fault codes using the scanner. Activate the PDC system and slowly approach an obstacle to verify correct distance reporting on all sensor positions. If the same fault code returns immediately, the replacement sensor or repair was not successful and further investigation is required. If the system operates normally through a full drive cycle, the repair is confirmed.
BMW-Specific Fault Codes Related to PDC Malfunction
| Code | Description | Likely cause |
|---|---|---|
| A806B | PDC sensor, rear left outer — signal fault | Failed ultrasonic sensor or open circuit in sensor wiring |
| A8068 | PDC sensor, rear center left — signal fault | Defective sensor element or damaged connector at rear bumper |
| A8071 | PDC sensor, front right outer — signal fault | Physical impact damage to front bumper sensor or wiring fault |
| A807E | PDC control unit — internal fault | Module failure, water ingress into PDC ECU, or corrupted firmware |
FAQ — BMW PDC Malfunction
Can I still drive my BMW safely with a PDC Malfunction warning?
Yes — a PDC Malfunction does not affect engine, transmission, braking, or steering function. Your BMW is mechanically safe to drive. However, the parking distance control system is disabled, meaning you will have no audible or visual obstacle warnings during low-speed maneuvering. Exercise additional caution when parking until the fault is repaired.
How much does it cost to fix a BMW PDC malfunction?
If a single PDC ultrasonic sensor is the cause, the part typically costs between $30 and $80 depending on the BMW series and sensor position. Dealer labor to replace a sensor is roughly 0.5–1.0 hour. If the PDC control module requires replacement and coding, costs increase significantly — expect $400–$900 at a dealer depending on platform. Diagnosing with your own scanner first ensures you're not paying for guesswork.
Why did my BMW PDC malfunction warning appear only in cold weather?
Cold temperatures cause the plastic sensor housings to contract slightly, which can open up micro-cracks in the sensor element or momentarily break a marginal wiring connection. Ice forming directly on the sensor face also causes signal dropouts. If the warning clears once the vehicle warms up, you likely have a sensor or connector that is marginal and will eventually fail permanently — scan for stored (not just current) fault codes to catch these intermittent faults.
Which BMW models are most commonly affected by PDC malfunctions?
PDC faults are reported across nearly all BMW series that have the system fitted, but are particularly common on high-mileage F30 3 Series, F10 5 Series, F15 X5, and E70/E71 X5/X6 vehicles. Rear bumper sensor wiring harness wear is a documented issue on F-series platforms, and sensor degradation is common on any BMW over 80,000 miles. G-series vehicles (G20, G30, G05) use an updated sensor design with integrated modules, where a single failed sensor can also affect the surround-view and Reversing Assist systems simultaneously.
