What Does "Air Suspension Malfunction" Mean on an Audi?

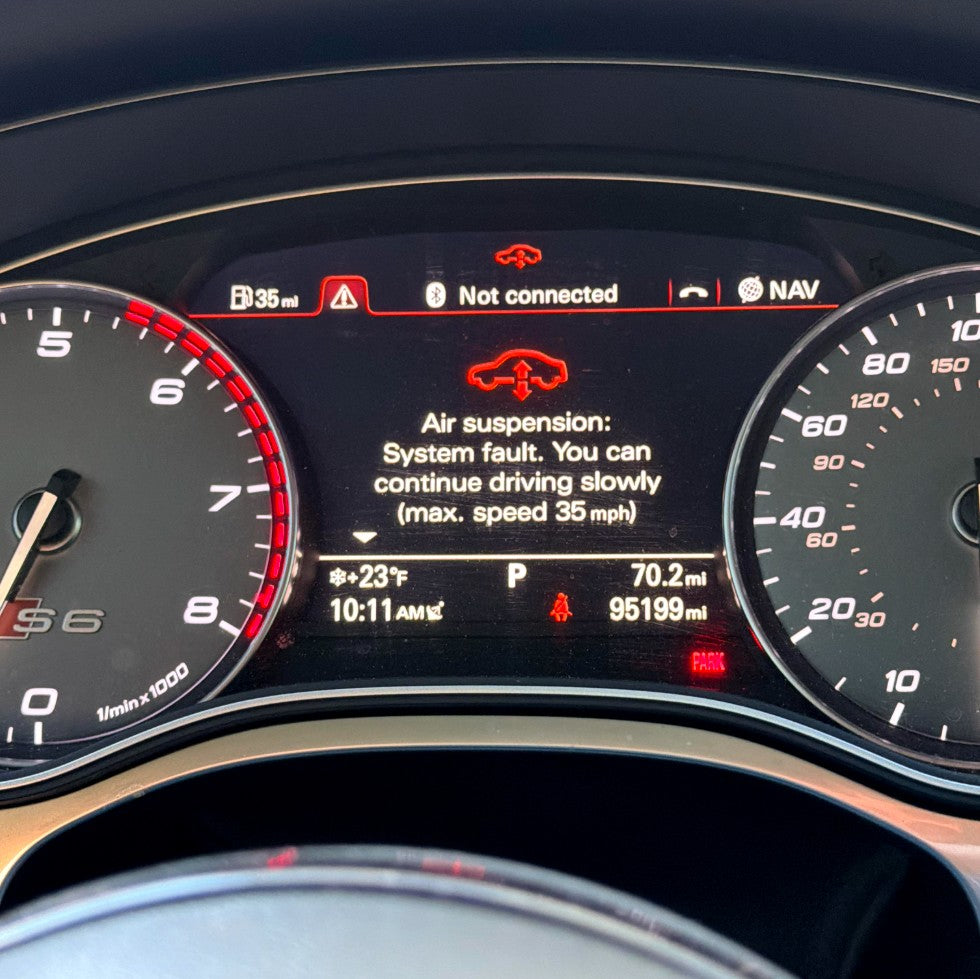

The Air Suspension Malfunction warning appears in the instrument cluster or MMI display when the Electronic Air Suspension (EAS) control module detects a fault in the pneumatic or electronic components of the system. On Audi models equipped with adaptive air suspension — including the Q7 (4L, 4M), Q8, A8 (D4, D5), A6 Allroad (C7, C8), and Q5 with optional air suspension — this warning means the system can no longer regulate ride height or damping as intended. If you're searching for audi air suspension malfunction causes, you're in the right place.
The audi pneumatic suspension malfunction warning commonly appears alongside a reduced ride height, a vehicle sitting noticeably low on one or more corners, or a compressor that runs constantly without achieving target pressure. In some cases, the vehicle will default to a fixed, lowered ride height and disable Drive Select suspension modes. Left unaddressed, continued operation can damage the air compressor, air struts, and valve block — all expensive components.
Common Causes of Air Suspension Malfunction on an Audi
Failed or Worn Air Strut (Air Spring)
The most frequent cause of an audi air ride malfunction is a failed air strut. The rubber air bladder inside each strut degrades over time — particularly on high-mileage Q7 4L and A8 D4 platforms — cracking at the bellows or where the bladder seats against the piston. This causes a slow or rapid loss of pressure on one corner, triggering the warning. The system logs a pressure-loss fault for the specific corner. Inspect the strut for visible cracks, oily residue, or audible hissing with the vehicle at ride height.
Air Compressor Failure or Overload
The air suspension compressor — mounted in the rear underbody area on most Audi platforms — runs on demand to maintain system pressure. When air springs leak slowly, the compressor runs excessively and eventually overheats or burns out. A failed compressor will trigger an audi suspension malfunction warning and leave the vehicle unable to raise from its lowered default position. Common failure signs include a compressor that runs for extended periods without the vehicle rising, or one that no longer activates at all. The integrated dryer cartridge inside the compressor assembly also degrades and should be replaced with the compressor unit.
Faulty Valve Block
The valve block (also called the solenoid valve block) distributes compressed air from the reservoir to each individual strut. A failed solenoid valve — due to corrosion, electrical fault, or internal wear — can cause one or multiple corners to lose pressure independently or prevent proper inflation. On the Q7 4M and A6 C7 Allroad, a leaking valve block will often cause a single-corner low warning without any visible strut damage. Fault codes will typically identify which valve circuit is at fault.
Air Line or Fitting Leak
The pneumatic lines connecting the compressor, reservoir, valve block, and struts are nylon tubing with press-fit connectors. These lines can crack from age, heat cycling, or road debris impact — especially on Q7 and Q8 models where lines run along the undercarriage. A leak anywhere in the circuit will cause the compressor to run continuously and fail to hold target pressure. A soap-water spray or UV leak dye introduced into the system is the most reliable method to locate line leaks.
EAS Control Module or Height Sensor Fault
The Electronic Air Suspension control module monitors pressure, ride height, and compressor status. A module fault — caused by water ingress (common in the A8 D4 trunk area), software error, or power supply issue — can trigger a blanket audi air suspension malfunction warning without any mechanical failure present. Additionally, each corner has a ride height sensor (linkage-type potentiometer) that reports wheel travel to the module. A damaged, disconnected, or out-of-range sensor will cause the module to report an incorrect ride height and trigger the warning. On the Q7 4L, rear height sensor rod joints are a known wear item.
What to Do When You See This Warning
When Air Suspension Malfunction appears, note whether the vehicle is sitting level or visibly low on one or more corners. If the vehicle is significantly sagging at one corner, drive cautiously at reduced speeds — the compromised air spring provides less damping and the lowered ride height may create clearance issues. Avoid loading the vehicle heavily or driving over rough terrain until the fault is diagnosed. If the compressor is running audibly and continuously, switch the ignition off to prevent compressor burnout; running the compressor dry against a severe leak will cause secondary damage.
This warning should not be ignored for more than a day or two of normal driving. A slow strut leak that causes the compressor to overwork will result in compressor failure — turning a $200–$400 strut repair into a $600–$1,200 compressor replacement on top of it. On the Audi Q7 air suspension malfunction, ignoring the warning has a documented pattern of cascading component failure. Scan for fault codes immediately to identify whether the issue is mechanical (strut, line, valve block) or electronic (sensor, module).
Don't Pay $100+ Just to Read a Fault Code
Audi stores VAG-specific fault codes behind this warning that generic scanners won't access. The Launch X431 CR319 reads Audi/VAG chassis codes from the EAS module in under 30 seconds — identifies exactly which corner, component, or circuit triggered the malfunction without a dealer visit.
→ Get the OBD2 ScannerHow to Diagnose Air Suspension Malfunction on an Audi
Diagnosing an audi air suspension malfunction correctly requires both a scan tool capable of reading VAG-specific codes from the EAS control module (address 34 in VCDS/VAG-COM) and a physical inspection of the pneumatic circuit. A generic OBD2 scan will miss chassis-level codes. Work through the steps below systematically before replacing any parts.
Step 1: Scan for fault codes. Connect a VAG-compatible scanner and pull codes from Module 34 — Level Control. Note every stored and active code, including the associated corner or component. On VCDS, you can also view live data (actual vs. target ride height per corner, compressor runtime, system pressure) to confirm whether the fault is mechanical or sensor-related. This step alone will direct you to the correct component 80% of the time.
Step 2: Perform a physical leak inspection. With fault codes in hand, focus on the flagged corner. Spray the air strut bellows, upper mount area, valve block fittings, and all nylon air lines with soapy water. Turn the ignition on and allow the compressor to pressurize the system. Bubbling at any point confirms a pneumatic leak. Pay close attention to the press-fit connectors where lines attach to the valve block — these are a frequent failure point on Q7 4L and A8 D4 models.
Step 3: Test the ride height sensors. Using live data in your scan tool, check the reported ride height value for each corner against the actual measured ride height. A sensor reporting an implausible or fixed value while the vehicle moves indicates a failed sensor or disconnected linkage rod. On the Q7 and Q5, physically inspect the sensor arm and ball-socket joint for corrosion or separation — these are inexpensive parts that are frequently overlooked.
Step 4: Evaluate compressor function. If no leaks are found and height sensors test correctly, command the compressor to run via the scan tool's output test function (VCDS: Module 34 → Output Tests). Listen for the compressor motor activating and monitor whether system pressure rises. No motor activation points to a compressor electrical fault or failed relay. Motor activating but no pressure rise indicates a failed compressor pump element or check valve. Also inspect the air dryer/filter element — a clogged dryer will restrict airflow and cause compressor overload codes.
Audi-Specific Fault Codes Related to Air Suspension Malfunction
| Code | Description | Likely cause |
|---|---|---|
| 01316 | Air Suspension Control Module — No Communication | EAS module power/ground fault, CAN bus issue, or failed module (common on A8 D4 with water ingress) |
| 01044 | Control Module Incorrectly Coded | Module replaced without proper coding via VCDS/ODIS; requires variant coding to vehicle configuration |
| 00588 | Level Sensor — Front Left: Signal Outside Tolerance | Failed or disconnected front left ride height sensor; damaged sensor linkage rod joint |
| 00778 | Air Suspension Compressor — Open Circuit / Malfunction | Failed compressor motor, blown fuse, faulty relay (J403), or wiring fault at compressor connector |
FAQ — Audi Air Suspension Malfunction
Can I drive my Audi with the Air Suspension Malfunction warning on?
Short distances at reduced speed are generally possible, but it depends on the severity. If the vehicle is sitting level and only slightly lower than normal, you can drive carefully to a shop. If one corner is significantly sagging — more than 1–2 inches lower than the others — avoid driving it, as the compromised strut reduces handling stability and the lowered geometry can damage wheel arch liners or suspension components on bumps. Do not make extended highway trips with this warning active.
Why does my Audi Q7 air suspension keep going down overnight?
A vehicle that drops overnight — particularly on one corner — almost always indicates a slow air leak from a cracked air strut bladder or a leaking valve block solenoid. The system holds pressure when the ignition is off, so any leak will gradually drain the affected corner. A second common cause on the Q7 4L is a failing check valve in the compressor assembly that allows pressurized air to bleed back through the compressor when it's not running. Scan for corner-specific pressure loss codes and perform a leak-down inspection.
How much does it cost to fix an Audi air suspension malfunction?
Repair cost varies widely by component. A single ride height sensor is typically $80–$150 parts plus 30–60 minutes labor. An air strut (OEM replacement) runs $300–$600 per corner with $150–$300 labor. A complete air compressor assembly is $400–$900 OEM, with 1–2 hours labor. A valve block replacement runs $300–$700 parts. Full system replacements (all four struts, compressor, valve block) at a dealer on a Q7 or A8 can reach $3,500–$6,000+. Aftermarket strut kits are available at significantly lower cost and are a viable option on high-mileage vehicles.
Will a standard OBD2 scanner read Audi air suspension fault codes?
No. The EAS control module communicates over the Audi/VAG proprietary protocol and is not exposed through the standard OBD2 port emissions-mode scan. A generic scanner will return no codes even when a serious suspension fault is stored. You need a VAG-compatible tool — such as the Launch X431 CR319, VCDS, or similar — that can access Module 34 (Level Control) directly. Without the specific fault code, diagnosing which component failed is guesswork.
