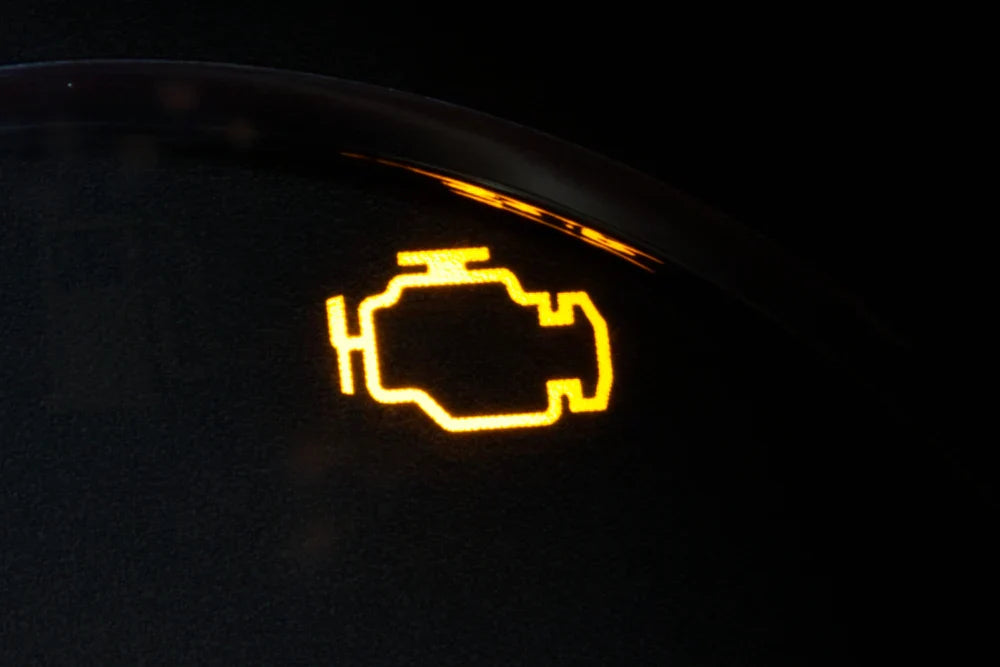

The Toyota Highlander check engine light — an amber icon labeled "CHECK ENGINE" or displayed as the standard MIL symbol on the instrument cluster — just came on.
This guide covers the most common reasons the check engine light trips on the Toyota Highlander across the second through fourth generations (2001–present), how to read the fault codes yourself, and what the most frequently reported DTCs mean for this specific platform. The Highlander's V6 and four-cylinder engines, hybrid powertrain variants, and Toyota's sequential fuel injection system each introduce failure patterns that are distinct from generic crossover diagnostics — particularly around the evaporative emission system, oxygen sensor aging, and hybrid-related faults on the HV models.
What the Toyota Highlander Check Engine Light Means
Every modern Toyota Highlander continuously monitors the engine, emissions system, fuel delivery, ignition, and transmission through a network of electronic control modules — the Engine Control Module (ECM), Transmission Control Module (TCM), Body Control Module (BCM), and on hybrid models, the Hybrid Control Module (HCM) and Motor Generator Control Module (MG ECU). When any monitored parameter falls outside expected range, the relevant module logs a Diagnostic Trouble Code (DTC) and illuminates the Malfunction Indicator Lamp (MIL).
On non-hybrid Highlanders, the ECM handles the bulk of engine and emissions monitoring. On Highlander Hybrid models (XLE, Limited, Platinum trim HV), faults can originate from either the conventional powertrain side or the high-voltage hybrid system — and some HV faults will trigger both the check engine light and a separate hybrid system warning on the multi-information display. These are handled by separate control modules and require separate diagnostic attention.
The light itself doesn't tell you what's wrong — it tells you the vehicle's self-diagnostic system has flagged something. The only way to know exactly what is to pull the stored codes with an OBD2 scanner.
Steady vs. Flashing: The Distinction That Actually Matters
Before doing anything else, observe the light's behavior.
A steady check engine light on a Toyota Highlander means a fault has been detected and stored. The vehicle may enter a reduced-performance mode in some cases, but driving short distances to a shop is generally safe. Address it within a few days.
A flashing check engine light is a different situation entirely. On the Toyota Highlander, a flashing MIL indicates active misfires — unburned fuel is entering the exhaust and can destroy the catalytic converter within miles. Reduce speed immediately, avoid hard acceleration, and get the vehicle to a shop as soon as possible. Do not ignore a flashing light.
On Highlander models equipped with the 2GR-FE or 2GR-FKS V6, a flashing MIL combined with rough idle is frequently tied to a failed ignition coil on one of the rear cylinder bank coils — a documented and common fault on these engines. The rear bank (cylinders 4–6) coils are harder to access and tend to run hotter, accelerating wear. If the light is flashing and the engine feels rough, stop driving and have the vehicle towed rather than risk catalytic converter damage.
Most Common Causes on the Toyota Highlander
While the check engine light can be triggered by hundreds of faults, a handful of causes account for the majority of cases on the Toyota Highlander.
1. Loose, Damaged, or Failed Fuel Cap (EVAP Leak — P0441 / P0455 / P0456)
The Evaporative Emission Control (EVAP) system on the Highlander is one of the most common check engine light triggers across all generations. Toyota's EVAP system is sensitive to pressure changes, and a loose or cracked fuel cap is frequently the culprit behind small- and large-leak codes. On third- and fourth-generation Highlanders (2014–present), the EVAP canister, canister close valve (CCV), and vapor pressure sensor are also known failure points. Before assuming a major EVAP component has failed, check that the fuel cap is fully tightened — it should click two to three times after it seats.
2. Failing Oxygen Sensors or Air/Fuel Ratio Sensors (P0136 / P0141 / P0155 / P0171 / P0174)
The Highlander's V6 engines run two banks of cylinders, each with its own upstream Air/Fuel Ratio (A/F) sensor and downstream oxygen sensor (O2 sensor). Sensor aging, contamination from oil consumption, or coolant intrusion from a failing head gasket (more relevant on early 3.3L V6 models) can degrade sensor response. Codes indicating lean conditions on both banks — P0171 (Bank 1 lean) and P0174 (Bank 2 lean) — are particularly common on the 1MZ-FE and 3MZ-FE engines and typically point to a dirty or failing Mass Air Flow (MAF) sensor rather than the O2 sensors themselves.
3. Catalytic Converter Degradation (P0420 / P0430)
P0420 (Catalyst System Efficiency Below Threshold, Bank 1) and P0430 (Bank 2) are among the most frequently reported codes on higher-mileage Highlanders, particularly those with the 3.5L 2GR-FE V6 used from 2008 onward. The downstream O2 sensor monitors converter efficiency; as the catalyst degrades over time, the waveform from the downstream sensor begins to mirror the upstream sensor's activity. Before replacing the catalytic converter — a significant expense — verify that the upstream A/F sensors are functioning correctly, as a lazy upstream sensor can generate a false P0420.
4. Ignition Coil or Spark Plug Failure (P0300–P0306)
Misfire codes are consistently documented on Highlanders with the 2GR-FE and 2GR-FKS V6 engines, particularly at higher mileage. The rear-bank ignition coils (cylinders 4, 5, and 6) are more difficult to access and fail at higher rates than the front bank. Toyota originally spec'd iridium spark plugs at 120,000-mile replacement intervals, but real-world experience on the Highlander suggests that plugs degrading earlier — especially in stop-and-go driving — can trigger intermittent misfires before the scheduled service interval. If the MIL is flashing, a misfire code is almost certainly present.
5. Hybrid System Faults — Inverter, HV Battery, or MG Sensor Issues (Highlander Hybrid)
On Highlander Hybrid models (2006–present), check engine lights can originate from the high-voltage system rather than the conventional engine. Common documented faults include degradation of the HV battery pack (particularly on early 2006–2007 models now past 150,000 miles), faults in the inverter cooling system (clogged inverter coolant pump or low inverter coolant level), and issues with the Motor Generator (MG) speed sensors. These faults generate Toyota-specific DTCs that may not display descriptive text on basic OBD2 scanners — a scanner capable of reading enhanced Toyota codes is recommended for Highlander Hybrid diagnosis.
Stop guessing. Pull the code in 30 seconds.
The Launch X431 CR319 reads and clears codes on any OBD2 vehicle — including your Toyota Highlander. Small enough for the glove box, no subscription required.
→ Get the OBD2 ScannerHow to Diagnose the Toyota Highlander Check Engine Light
Dealer diagnosis for a check engine light typically runs $100–$150 just for the scan. Here's how to do it yourself before committing to that cost.
Step 1: Plug in an OBD2 scanner. The OBD2 port on the Toyota Highlander is located beneath the driver-side instrument panel, to the left of the steering column, near the hood release lever. It is accessible without tools. With the ignition on (engine off), plug in the scanner and retrieve all stored and pending codes.
Step 2: Record every code. Write down all DTCs — both active faults and pending codes. Pending codes are faults the system has detected but hasn't yet confirmed across multiple drive cycles.
Step 3: Research the specific codes. The DTC tells you which system is involved and what parameter is out of range. A P0420 (catalyst efficiency below threshold) points to the catalytic converter or upstream oxygen sensor. A P0171 (system too lean, bank 1) points to a vacuum leak, MAF sensor, or fuel delivery issue. The code narrows the diagnosis considerably.
Step 4: Verify before replacing parts. On the Highlander, resist the impulse to immediately replace the part named in the code. A P0420, for example, is frequently misdiagnosed as a catalytic converter failure when the actual cause is a degraded upstream A/F ratio sensor sending inaccurate data. Similarly, P0171/P0174 lean codes almost always warrant cleaning or testing the MAF sensor before replacing injectors or fuel pump components. Use live data from the scanner to monitor sensor readings before ordering parts.
Step 5: Fix the root cause. Clearing the code without addressing the underlying fault is temporary at best. The light will return within a drive cycle or two if the problem persists.
How to Turn Off the Check Engine Light on a Toyota Highlander
The check engine light will turn off automatically once the fault is repaired and the ECU has completed enough drive cycles to confirm the system is functioning correctly. This typically takes one to three drive cycles depending on the fault type.
To clear it immediately after a repair, use an OBD2 scanner to erase the stored DTCs. On the Toyota Highlander: connect the scanner with the ignition on and engine off, navigate to the "Erase Codes" or "Clear DTCs" function, and confirm the command. The MIL should extinguish immediately. If the light returns within one or two drive cycles, the underlying fault was not fully resolved.
Important: clearing codes without fixing the underlying issue will turn the light off temporarily, but the code will return. It will also reset the OBD2 readiness monitors, which must complete before the vehicle can pass an emissions inspection.
If your Highlander is registered in a state with OBD2-based emissions testing — including California, New York, Texas, and most others — clearing the codes immediately before a smog test will result in a failed inspection due to incomplete readiness monitors, even if no fault is present. After clearing codes, you'll need to complete a full OBD2 drive cycle (typically involving a cold start, highway driving, and city stop-and-go) before the monitors will report "Ready." On Highlander Hybrid models, some monitors take longer to set due to the engine's intermittent operation under hybrid logic.
Common OBD2 Fault Codes on the Toyota Highlander
| Code | Description | Likely cause on the Highlander |
|---|---|---|
| P0420 | Catalyst System Efficiency Below Threshold (Bank 1) | Degraded catalytic converter on the front bank; also commonly caused by a failing upstream Air/Fuel Ratio sensor skewing efficiency calculations — verify sensor operation before replacing the converter |
| P0171 | System Too Lean (Bank 1) | Dirty or failing MAF sensor on V6 models; also vacuum leaks at intake manifold gaskets or PCV hose connections, particularly on higher-mileage 1MZ-FE and 2GR-FE engines |
| P0456 | EVAP System Small Leak Detected | Loose or faulty fuel cap is the first thing to check; if reseating the cap doesn't resolve it, the EVAP canister close valve (CCV) or vapor pressure sensor is a documented failure point on third- and fourth-gen Highlanders |
| P0301–P0306 | Cylinder-Specific Misfire Detected | Failed ignition coil (rear-bank coils are highest-failure items on the 2GR-FE V6) or worn iridium spark plugs; cylinder 4, 5, or 6 codes are most frequent due to rear-bank heat exposure |
| P0174 | System Too Lean (Bank 2) | When present alongside P0171, a contaminated MAF sensor is the primary suspect; if Bank 2 only, check for a vacuum leak or fuel injector issue on the rear cylinder bank |
| P3190 / P3191 | Engine Does Not Start (Hybrid) / Poor Engine Power (Hybrid) | Toyota-specific hybrid codes found on Highlander Hybrid models; typically related to HV battery degradation, inverter cooling system faults, or MG ECU communication errors — requires enhanced Toyota scan tool for full diagnosis |
FAQ — Toyota Highlander Check Engine Light
Can I drive my Toyota Highlander with the check engine light on?
If the light is steady and the Highlander is driving normally — no rough idle, no power loss, no unusual noise — it's generally acceptable to drive short distances while you arrange a diagnosis. That said, don't leave it unaddressed for weeks. Some faults that produce a steady light, like a lean condition from a failing MAF sensor, can cause additional component damage over time. If the light is flashing, stop driving as soon as it's safe to do so — a flashing MIL on the Highlander means active misfires that can destroy the catalytic converter in a matter of miles.
Why did my Toyota Highlander check engine light come on after a gas fill-up?
This is one of the most common scenarios on the Highlander, and the cause is almost always EVAP-related. If the fuel cap wasn't fully tightened after filling up — it needs to click firmly into place — the ECM will detect a pressure drop in the evaporative emission system and log a leak code, typically P0455 or P0456. Remove the cap, reinstall it until it clicks two or three times, and drive normally for a day or two. The light may clear on its own once the system confirms the leak is gone. If it doesn't, scan for codes — a failed EVAP canister or canister close valve may be the actual cause.
Does the Toyota Highlander Hybrid have different check engine light causes than the non-hybrid?
Yes, meaningfully so. While both share the same conventional engine-related fault codes, the Highlander Hybrid adds an entire layer of high-voltage system monitoring. Faults originating in the HV battery pack, inverter assembly, inverter cooling pump, or Motor Generator (MG1/MG2) can trigger the check engine light — and in more serious cases, will also illuminate the dedicated hybrid system warning indicator. Many of these faults generate Toyota-specific enhanced DTCs (such as P3000-series codes) that a basic generic OBD2 scanner won't display descriptively. For Highlander Hybrid diagnosis, use a scanner with Toyota enhanced protocol support or visit a dealer with Toyota Techstream access.
How much does it cost to fix a check engine light on a Toyota Highlander?
Cost depends entirely on the root cause. Replacing a fuel cap runs under $20. Cleaning a MAF sensor with MAF-safe spray costs a few dollars and takes 15 minutes. Replacing an ignition coil on the front bank of a V6 Highlander typically runs $80–$150 in parts; rear-bank coils cost more in labor due to access difficulty. A set of six iridium spark plugs on the V6 runs $80–$130 in parts. A new catalytic converter — the most expensive common fix — can run $800–$1,800 installed depending on whether you use OEM Toyota or an aftermarket unit. On Highlander Hybrids, HV battery replacement or reconditioning is the most significant potential expense, ranging from $2,000 to $4,500 depending on the shop and whether new, remanufactured, or reconditioned cells are used.
