Apple Carplay/Android Auto retrofit kit for Audi Q5 II (2017 to 2024)

$44990
Tax included Shipping calculated at checkout.

Screen size
  • American Express
  • Apple Pay
  • Cartes Bancaires
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Description
  • About us

Transform your Audi Q5 II into a connected multimedia hub!

  • User manual sent with your purchase
  • 1 year guarantee

 This step-by-step tutorial details the full installation process of a CarPlay and Android Auto interface module on an Audi Q5 equipped with the factory MMI system. The procedure preserves all original vehicle functions while adding modern smartphone integration features such as Apple CarPlay, Android Auto, and screen mirroring.

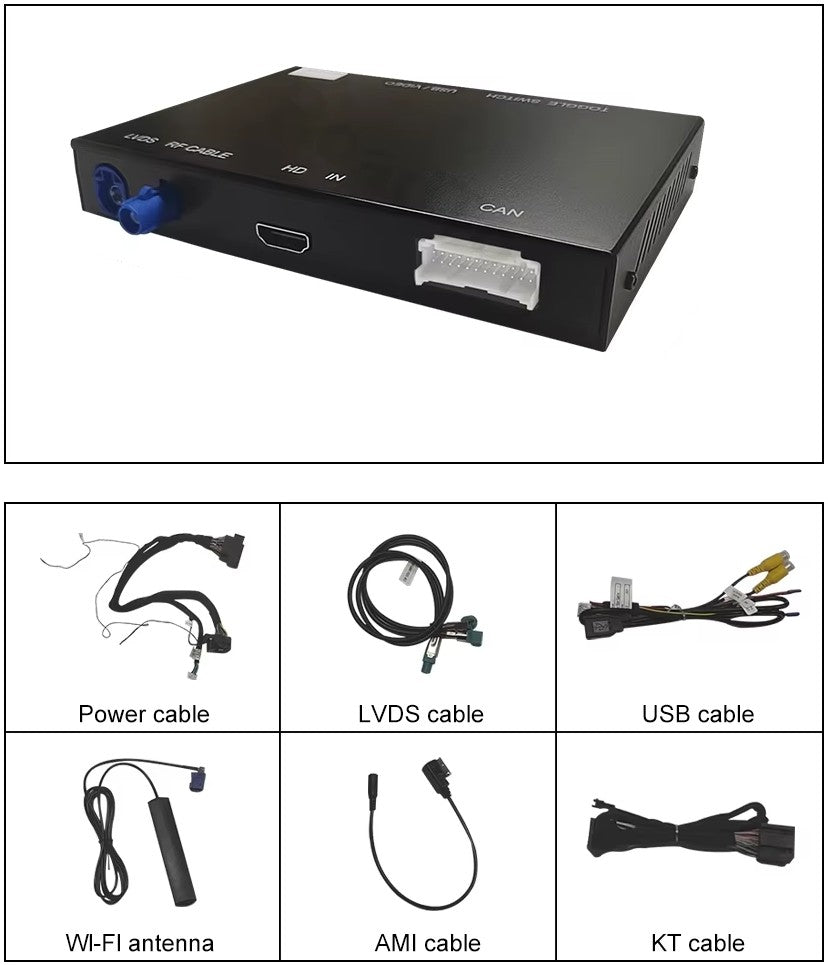

1. Overview of the Kit Components

Before starting, verify that your kit includes the following components:

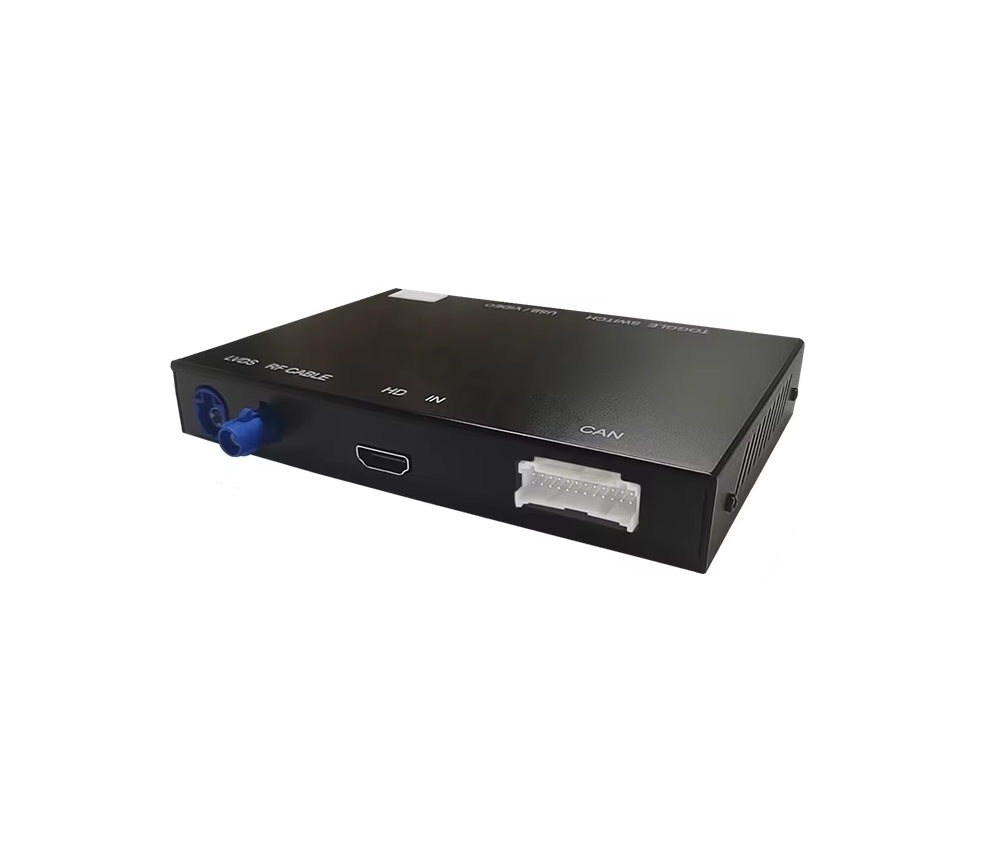

- The main interface module (metal control box with multiple ports)

- A main wiring harness with Quadlock connectors

- A gateway transfer harness

- An RCA + USB harness (optional for wired connection)

- LVDS video cables

Important:

The DIP switch configuration must match your screen size and resolution. Refer to the included chart in the user manual for more info.


2. Preparation and Safety

- Turn off the ignition and remove the key

- Disconnect the battery if preferred (recommended for safety) (Put your shifter in S Mode first)

- Protect trim surfaces using a cloth to avoid scratches


3. Glovebox Removal Preparation

To access the installation area:

- Remove five 8mm screws:

- 1 screw on the side of the dashboard (remove the cover first with a plastic lever)

- 3 screws inside the upper glove box

- 2 screws underneath the glove box

- 1 srew at the bottom of the glovebox

- Carefully lower and remove the tray below the CD Changer




4. Removing the CD Changer Unit

- Unscrew the bolts holding the CD Changer in place

- Insert 2 flat keys inside the CD Changer slots

- Pull the MMI CD Changer unit out gently




5. Removing the Glovebox

- Remove the light connector and gently pull the glovebox away



6. Removing Radio Connectors

Quadlock Connector:

- Use a flathead screwdriver to lift the locking lever

- Disconnect the main Quadlock plug

- Plug the factory Quadlock connector into the new harness (lock it by lowering the lever)

- Connect the new harness back into the MMI head unit



LVDS Cable (Video Signal):

- Locate the LVDS port (usually the pink connector)

- Press the clip and remove the cable

- Connect the new cable between the OEM radio unit and our module

This creates a video bypass loop, allowing the module to inject CarPlay/Android Auto into your original multimedia system.



7. Optional USB & RCA Routing

If you want to have the option of using wired CarPlay/Android Auto:

- Route the USB cable under the glove box or center console

- Ensure easy access for the user

If not needed, you can skip this step since wireless connectivity is supported.


8. Connecting the Module

Connect all components to the module:

- Quadlock harness

- LVDS cable

- Gateway harness

- Bolt-in the Wi-Fi antenna

Each connector is uniquely shaped, preventing incorrect installation.


9. Initial System Test

Before reassembly:

- Turn on ignition

- Press and hold the MEDIA button for 3 seconds

- Switch between:

    - Factory MMI interface

    - CarPlay / Android Auto interface

Confirm that:

- Display switches correctly

- System responds smoothly


10. CD Changer Reassembly

Once testing is successful:

- Slide the CD Changer unit back into place and tighten the screws holding it

- Remove the extraction keys



11. Glovebox Reassembly

 - Put the glovebox back in place



- Tighten the screws holding the glovebox in place




12. Pairing Your Smartphone

For Android Auto:

- Enable Bluetooth on your phone

- Connect to the device (typically named “CAR-XXXX”)

- Accept pairing request

- Android Auto launches automatically

For Apple CarPlay:

- Follow the same Bluetooth pairing process

- CarPlay will initialize automatically


13. Final Result and Features

After installation, you gain access to:

- Wireless Apple CarPlay and Android Auto

- Navigation apps (Google Maps, Waze, Apple Maps)

- Music streaming and podcasts

- Phone calls and messaging

- Screen mirroring (depending on device compatibility)

All of this works seamlessly while retaining the original Audi MMI interface.


Complete wiring diagram


📖 User Manual Included

Download the full user and installation guide as a PDF with step-by-step photos and detailed diagrams.

 ⬇️ Download the User Manual (PDF)

Size: 2.5 MB | Format: PDF | Pages: 12

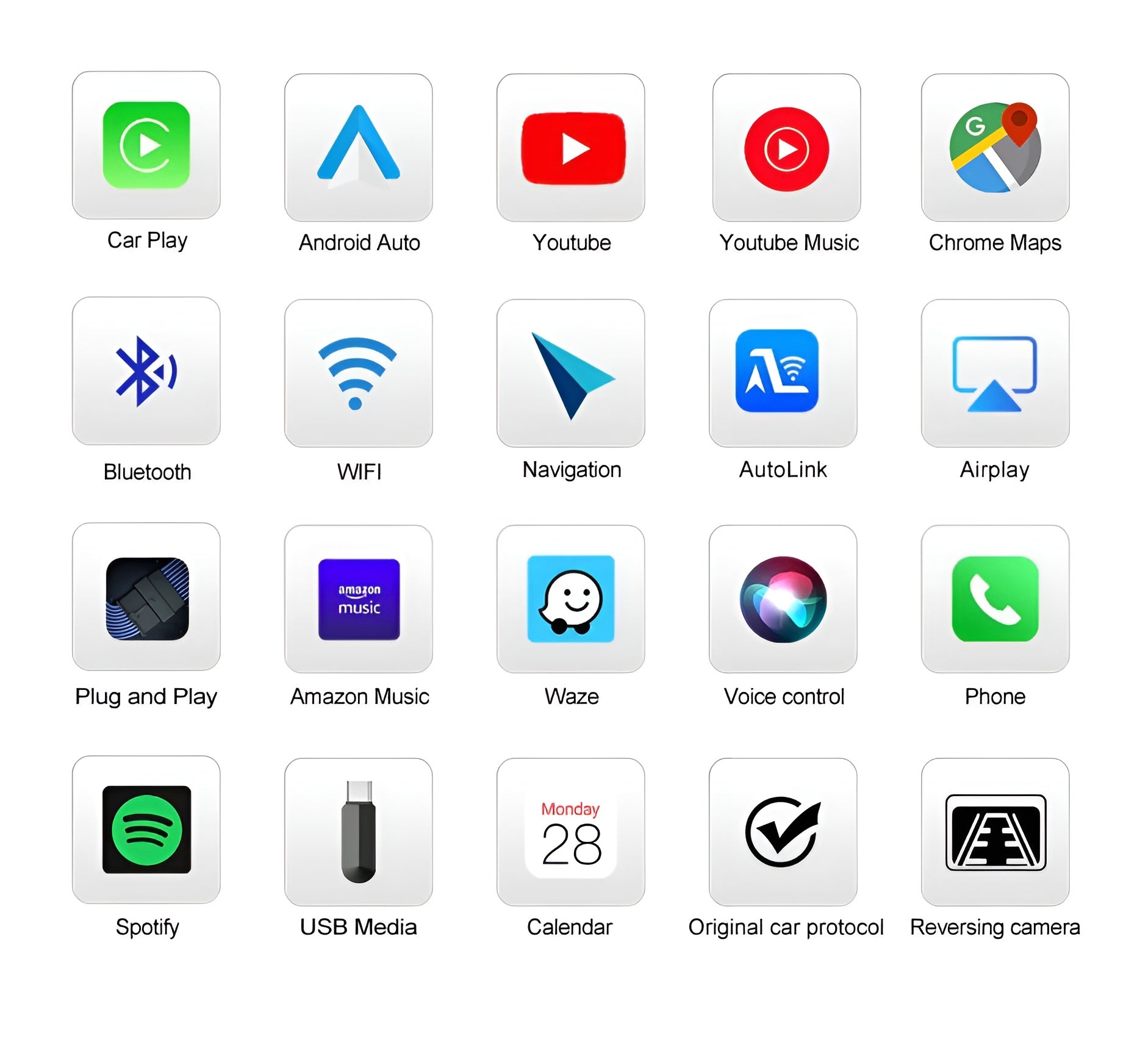

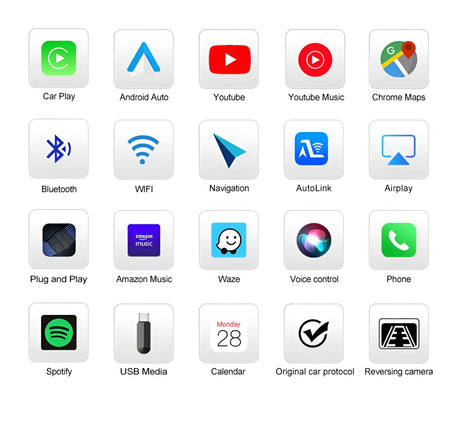

ALL YOUR SMARTPHONE APPS AVAILABLE

Enjoy a connected driving experience where all your essential apps integrate seamlessly with your vehicle’s screen. No more juggling between your phone and dashboard—everything you need is easily accessible, safely, and distraction-free.

Navigation, communication, entertainment… Transform your Audi into a smarter, more intuitive car, making every journey simpler and more enjoyable.





YOUR MUSIC EVERYWHERE

Experience immersive multimedia with full compatibility with top streaming apps. Whether you love music, podcasts, or videos, our CarPlay/Android Auto module for Audi A5 B9 gives you direct access to all your favorite content on your original vehicle screen. Spotify, Apple Music, Deezer, and Amazon Music integrate flawlessly, delivering optimal sound quality through your Audi’s speakers.

Enjoy the native interface of music apps with the ability to browse playlists, albums, and radio stations without touching your smartphone.



WATCH YOUR FAVORITE VIDEOS

In addition to music, this module supports YouTube and other video platforms—perfect for enjoying visual content while parked. Whether you’re waiting for an appointment or keeping passengers entertained, you can watch high-definition videos with top-quality sound.

With plug & play integration and compatibility with steering wheel controls and the MMI touchpad, switching between apps and adjusting volume is effortless.



CONNECTED NAVIGATION

Say goodbye to traffic jams and outdated information! With Google Maps, Waze, or Apple Maps, you get real-time GPS navigation displayed directly on your Audi Q5 II screen.

Enjoy live traffic updates, optimized routes, and alerts for speed limits and speed cameras. Whether driving in the city or on the highway, your navigation is smooth and precise. No need to handle your phone—control everything via steering wheel buttons, the MMI touchpad, or Siri/Google Assistant voice commands.



YOUR VOICE ASSISTANT

With Siri (CarPlay) and Google Assistant (Android Auto) integration, you stay in control without taking your eyes off the road or hands off the wheel. Need to send a message, make a call, or set a route? Just say "Hey Siri" or "Hey Google" to activate your voice assistant.

You can also ask it to read notifications, play your favorite playlist on Spotify or Apple Music, or find a gas station on Google Maps.



STAY IN CONTROL

Our module allows you to operate functions via the original Audi radio buttons, touchscreen, steering wheel voice control, and central touchpad, offering an intuitive and personalized driving experience.



OEM REVERSE CAMERA COMPATIBILITY

Installing our CarPlay/Android Auto module for the Audi Q5 II keeps your original reverse camera functionality. When shifting into reverse, the display automatically switches to the camera feed, including guidelines if your vehicle is equipped.

Enjoy optimal parking assistance while benefiting from modern CarPlay and Android Auto features. Get the best of both worlds: advanced connectivity without compromising your Audi’s original equipment!




KIT CONTENTS

- CarPlay/Android Auto Module

- Complete Wiring Harness
  (Box color and wiring may vary depending on the model selected)



COMPATIBILTY

How to Check Your Car’s Compatibility:

  1. Press the "Setup" or "Menu" button on your radio.

  2. Go to "Settings."

  3. Scroll down to "Version Information."

  4. Look for the first letters and numbers of the software version:

Our module is only compatible with DEV, CLU, MHI2 or HN+ versions.



Our team is available for any questions regarding installation and compatibility. We also provide a complete installation guide in English upon purchase.
